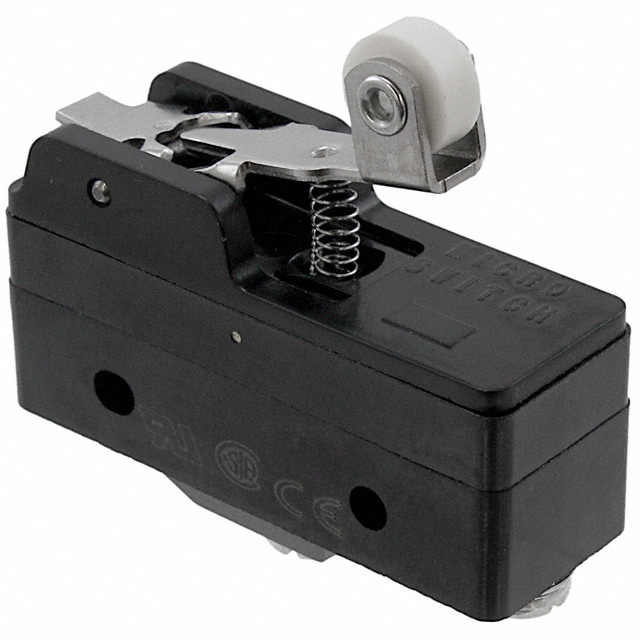

Specification	BZ-3RW822158-A46

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating	10 A, 0.5 A
Differential Travel (Linear)	0.03 in
Mechanical Life (Cycles)	20000000 Cycles
Mounting Type	Chassis Mount
Operating Force	184 gf
Operating Position (Length)	1.188 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Overtravel (Linear)	0.094 in
Release Force	43 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V

BZ-3RW Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Pretravel (Length)	Current Rating	Circuit	Operating Force (Min)	Operating Force (Max)	Release Force	Mechanical Life (Cycles)	Voltage Rating - AC	Termination Style	Differential Travel (Linear)	Switch Function	Operating Position (Length)	Overtravel (Linear)	Actuator Type	Mounting Type	Voltage Rating - DC	Features	Operating Force	Ingress Protection Description	Ingress Protection IP Rating	Ingress Protection
Honeywell Sensing and Productivity Solutions BZ-3RQ1-A2	-55 °C	85 °C	0.02 in	0.5 A 15 A	SPDT	397 gf	567 gf	113 gf	20000000 Cycles	125 V	Screw Terminal	0.003 in	On-Mom	0.859 in	0.219 in	Overtravel Plunger	Chassis Mount	125 V	Steel Plunger
Honeywell Sensing and Productivity Solutions BZ-3RDS152T-S	-55 °C	85 °C		0.5 A 10 A	SPDT	340 gf	567 gf	113 gf	20000000 Cycles	125 V	Screw Terminal	0.003 in	On-Mom	1.11 in	0.06 in	Round (Pin Plunger)	Chassis Mount	125 V	Steel Plunger
Honeywell Sensing and Productivity Solutions BZ-3RW8221555513T	-55 °C	85 °C		0.5 A 10 A	SPDT			43 gf	20000000 Cycles	125 V	Screw Terminal	0.03 in	On-Mom	1.188 in	0.094 in	Lever Roller	Chassis Mount	125 V		184 gf	Dust Tight Water Resistant	IP64
Honeywell Sensing and Productivity Solutions BZ-3AT	-55 °C	85 °C	0.03 in	1 A 15 A	SPDT	454 gf	737 gf	113 gf	20000000 Cycles	125 V	Screw Terminal	0.005 in	On-Mom	0.625 in	0.005 in	Round (Pin Plunger)	Chassis Mount	125 V
Honeywell Sensing and Productivity Solutions BZ-3YQ1T	-55 °C	85 °C	0.03 in	5 A	SPDT	454 gf	737 gf	113 gf	20000000 Cycles	250 V	Screw Terminal	0.004 in	On-Mom	0.859 in	0.219 in	Overtravel Plunger	Panel Mount
Honeywell Sensing and Productivity Solutions BZ-3YQ18T	-55 °C	85 °C	0.03 in	5 A	SPDT	454 gf	737 gf	113 gf	20000000 Cycles	250 V	Screw Terminal	0.004 in	On-Mom	1.313 in	0.141 in	Roller Plunger	Panel Mount
Honeywell Sensing and Productivity Solutions BZ-3R208
Honeywell Sensing and Productivity Solutions BZ-3YWT82	-55 °C	85 °C		5 A	SPDT			21 gf	20000000 Cycles	250 V	Screw Terminal	0.075 in	On-Mom	1.188 in	0.156 in	Lever Roller	Chassis Mount			127 gf
Honeywell Sensing and Productivity Solutions BZ-3RW80552-A2-S	-55 °C	85 °C		0.5 A 15 A	SPDT			21 gf	20000000 Cycles	125 V	Screw Terminal	0.06 in	On-Mom	1.188 in	0.172 in	Lever Roller	Chassis Mount	125 V		113 gf			Splash Proof
Honeywell Sensing and Productivity Solutions BZ-3YDT	-55 °C	85 °C	0.03 in	5 A	SPDT	454 gf	737 gf	113 gf	20000000 Cycles	250 V	Screw Terminal	0.006 in	On-Mom	0.835 in	0.062 in	Round (Pin Plunger)	Chassis Mount		Steel Plunger
