Description
General part information

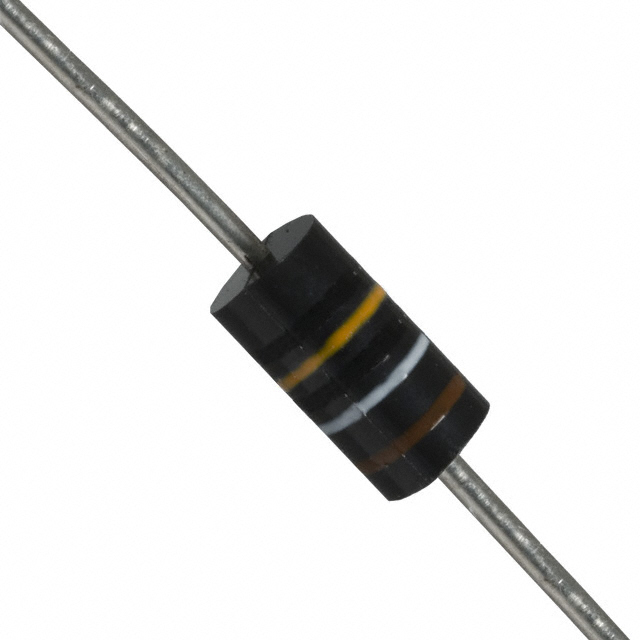

WLBR030FET
30 mOhms ±1% 1W Through Hole Resistor Axial Current Sense, Moisture Resistant Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | WLBR030FET |
|---|---|
| Composition | Wirewound |
| Features | Moisture Resistant, Current Sense |
| Number of Terminations | 2 |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 0.03 Ohms |
| Size / Dimension Diameter | 0.13 in |
| Size / Dimension Length | 0.276 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
