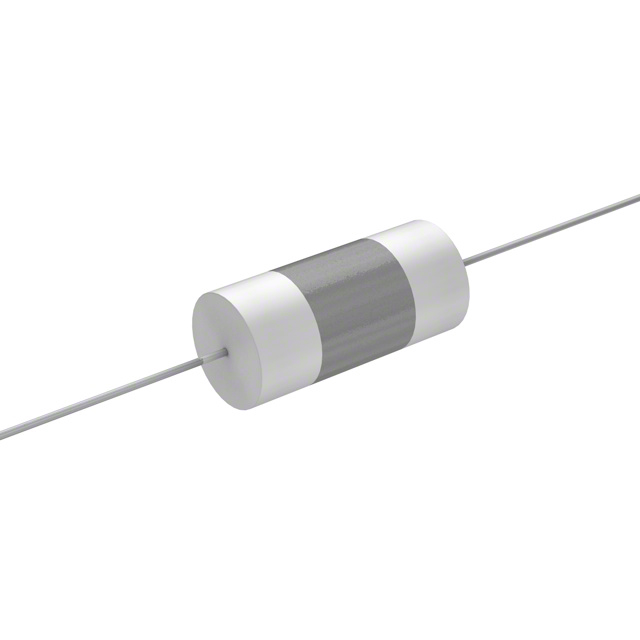

150154J400GC
ObsoleteCornell Dubilier Knowles
CAP FILM 0.15UF 5% 400VDC AXIAL
150154J400GC
ObsoleteCornell Dubilier Knowles
CAP FILM 0.15UF 5% 400VDC AXIAL
Description
General part information
150154J400GC
0.15 µF Film Capacitor 200V 400V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 150154J400GC |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.354 in |
| Size / Dimension Length | 0.807 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
