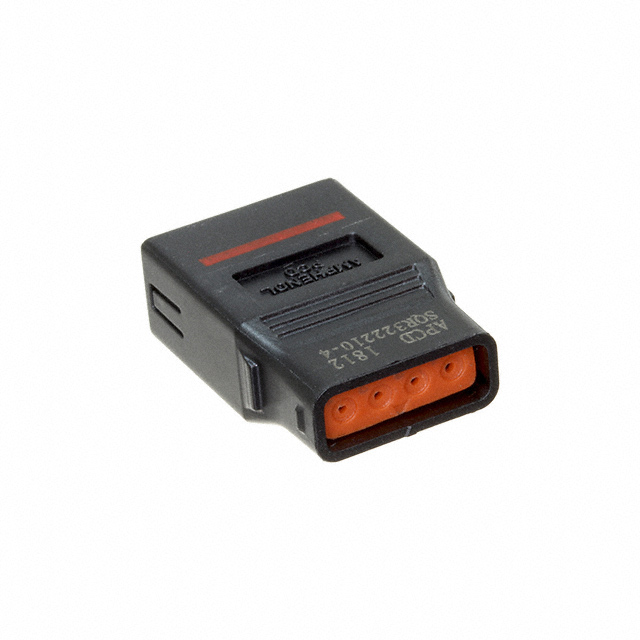

SQR322210-4
ObsoleteAMPHENOL PCD
CONN RCPT HSG 4POS 22AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQR322210-4
ObsoleteAMPHENOL PCD
CONN RCPT HSG 4POS 22AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SQR322210-4 |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | IP67 |
| Insulation Material | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SQR322210-4
4 Rectangular Connectors - Housings Receptacle
Documents
Technical documentation and resources
