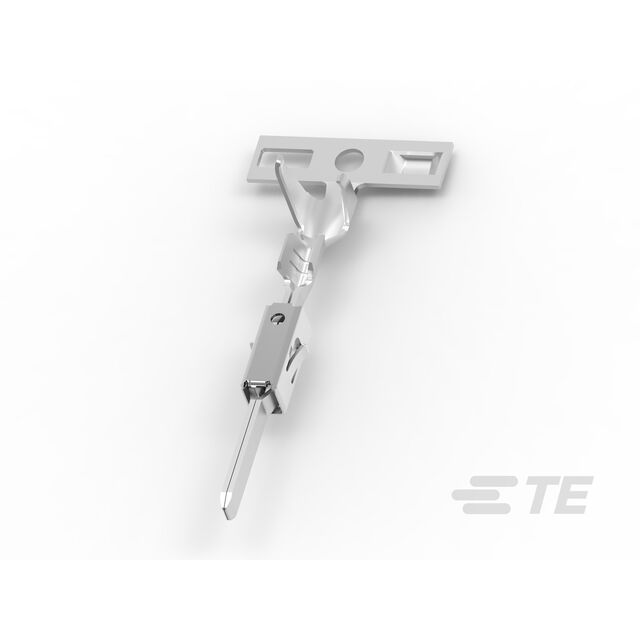

969028-5
ActiveTE Connectivity AMP Connectors
FLACHSTECKER1,6X0,6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969028-5
ActiveTE Connectivity AMP Connectors
FLACHSTECKER1,6X0,6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 969028-5 | 969028 Series |
|---|---|---|
| Contact Finish | Silver | Silver, Tin, Gold |
| Contact Finish Thickness | 3 µm | 3 µm |
| Contact Finish Thickness | 118.1 µin | 118.1 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.80 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.38 | |||
969028 Series
FLACHSTECKER1,6X0,6
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish | Pin or Socket | Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969028-5 | 20 AWG | 24 AWG | Crimp | Silver | Tab | Stamped | 3 µm | 118.1 µin |
TE Connectivity AMP Connectors 969028-2 | 20 AWG | 24 AWG | Crimp | Tin | Tab | |||
TE Connectivity AMP Connectors 969028-3 | 20 AWG | 24 AWG | Crimp | Gold | Tab |
Description
General part information
969028 Series
Tab Contact Silver 20-24 AWG Crimp Stamped
