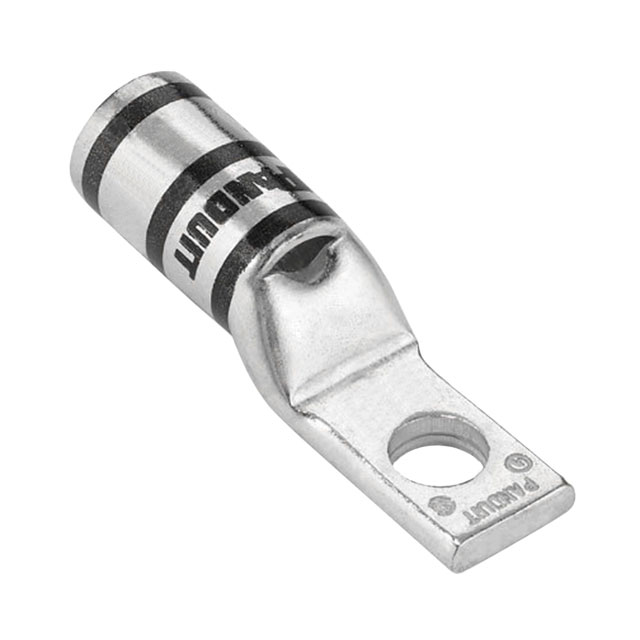

Specification	LCAN750-12-6

Color	Black
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	1.03 in
Diameter - Barrel OD	1.3 in
Diameter - Ring ID	0.53 in
Insulation	Non-Insulated
Length - Overall	4.03 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Tab Thickness	0.28 in
Terminal Style	Single Stud Hole
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	1.3 in
Wire Gauge (MCM)	750 MCM

LCAN Series

Part	Diameter - Ring ID	Diameter - Barrel ID	Diameter - Barrel OD	Contact Material	Contact Finish	Wire Gauge	Mounting Type	Insulation	Tab Thickness	Stud/Tab Size	Width - Outer Edges	Terminal Type	Termination	Color	Terminal Style	Stud/Tab Size (Type)	Stud/Tab Size	Wire Gauge (MCM)	Length - Overall
Panduit Corp LCAN2/0-14H-X	0.27 in	0.45 in	0.58 in	Copper	Electro-Tin	2/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.13 in	0.25 Stud	0.58 in	Rectangular Tongue	Barrel Crimb	Black	Single Stud Hole
Panduit Corp LCAN4/0-56F-X	0.34 in	0.57 in	0.71 in	Copper	Electro-Tin	4/0 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.15 in	0.3125 in	0.71 in	Rectangular Tongue	Barrel Crimb	Purple	Single Stud Hole	Stud	16 Stud 5 Stud
Panduit Corp LCAN4/0-56H-X	0.34 in	0.57 in	0.71 in	Copper	Electro-Tin	4/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 in	0.3125 in	0.71 in	Rectangular Tongue	Barrel Crimb	Purple	Single Stud Hole	Stud	16 Stud 5 Stud
Panduit Corp LCAN400-38-6	0.41 in	0.76 in	0.95 in	Copper	Electro-Tin		Free Hanging (In-Line)	Non-Insulated	0.23 in	0.375 in	0.95 in	Rectangular Tongue	Barrel Crimb	Blue	Single Stud Hole		3 Stud 8 Stud	400 MCM	3.24 in
Panduit Corp LCAN1/0-14F-X	0.27 in	0.39 in	0.52 in	Copper	Electro-Tin	1/0 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.13 in	0.25 Stud	0.52 in	Rectangular Tongue	Barrel Crimb	Pink	Single Stud Hole
Panduit Corp LCAN4/0-38H-X
Panduit Corp LCAN1/0-14H-X	0.27 in	0.39 in	0.52 in	Copper	Electro-Tin	1/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.12 in	0.25 Stud	0.52 in	Rectangular Tongue	Barrel Crimb	Pink	Single Stud Hole
Panduit Corp LCAN2-14F-Q	0.27 in	0.28 in	0.42 in	Copper	Electro-Tin	2 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.1 in	0.25 Stud	0.42 in	Rectangular Tongue	Barrel Crimb	Brown	Single Stud Hole
Panduit Corp LCAN6-6-L	0.15 in	0.22 in	0.31 in	Copper	Electro-Tin	6 AWG	Free Hanging (In-Line)	Non-Insulated	0.1 in	6 Stud	0.31 in	Rectangular Tongue	Barrel Crimb	Blue	Single Stud Hole				1.51 in
Panduit Corp LCAN2-14H-Q	0.27 in	0.31 in	0.42 in	Copper	Electro-Tin	2 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.1 in	0.25 Stud	0.42 in	Rectangular Tongue	Barrel Crimb	Brown	Single Stud Hole
