629-27W2240-5T5
ActiveEDAC Inc.

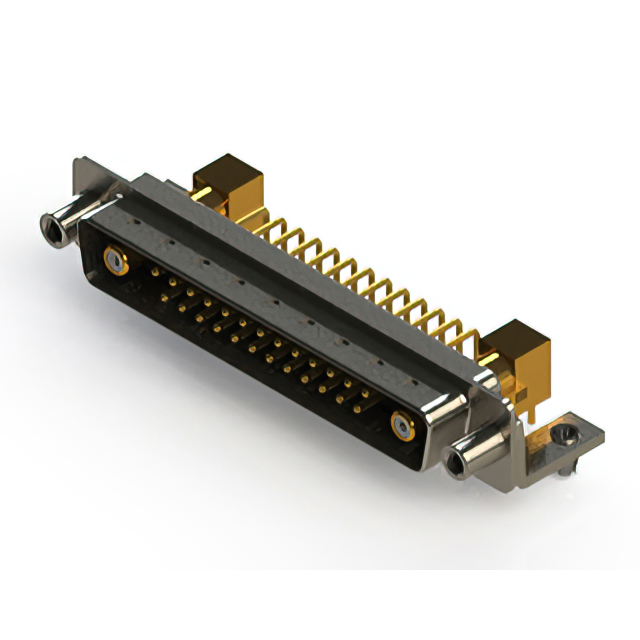

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-27W2, PLUG, 27 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
629-27W2240-5T5
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-27W2, PLUG, 27 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-27W2240-5T5 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Coax |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 27W2 |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-27W Series
...
| Part | Material Flammability Rating | Color | Features | Contact Material | Voltage Rating | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Mounting Type | Current Rating (Amps) | Dielectric Material | Contact Finish | Connector Type | Termination | Number of Rows | Shell Material, Finish | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | 0.76 Ám | 30 Áin | M3 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 40 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | |||
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (M3) | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 40 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | |||
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 20 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Nickel Plated Steel | ||
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | M3 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 20 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Flash | ||||
EDAC Inc. | UL94 V-0 | Black | Copper Alloy | 125 VDC | Combo D-Sub | Housing/Shell (4-40) | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Coax Signal | Through Hole Right Angle | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Flash | 27 | |||||
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | 0.76 Ám | 30 Áin | M3 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 20 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Nickel Plated Steel | ||
EDAC Inc. | UL94 V-0 | Black | Grounding Indents Shielded | Copper Alloy | 125 VDC | Combo D-Sub | Housing/Shell (Unthreaded) | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 40 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Flash | ||||
EDAC Inc. | UL94 V-0 | Black | Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | M3 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 20 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Nickel Plated Steel | Flash | |||
EDAC Inc. | UL94 V-0 | Black | Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | M3 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Signal and Power | Through Hole Right Angle | 5 A 40 A | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Nickel Plated Steel | Flash | |||
EDAC Inc. | UL94 V-0 | Black | Board Lock Grounding Indents Mounting Brackets | Copper Alloy | 125 VDC | Combo D-Sub | 4-40 | 27W2 | 4 | 9.4 mm | 0.37 in | -55 °C | 125 °C | Coax Signal | Through Hole Right Angle | Polyester Thermoplastic | Gold | Male Pins Plug | Solder | 2 | Flash | 27 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
629-27W Series
27 (25 + 2 Coax) Position D-Sub, Combo Plug, Male Pins Connector
