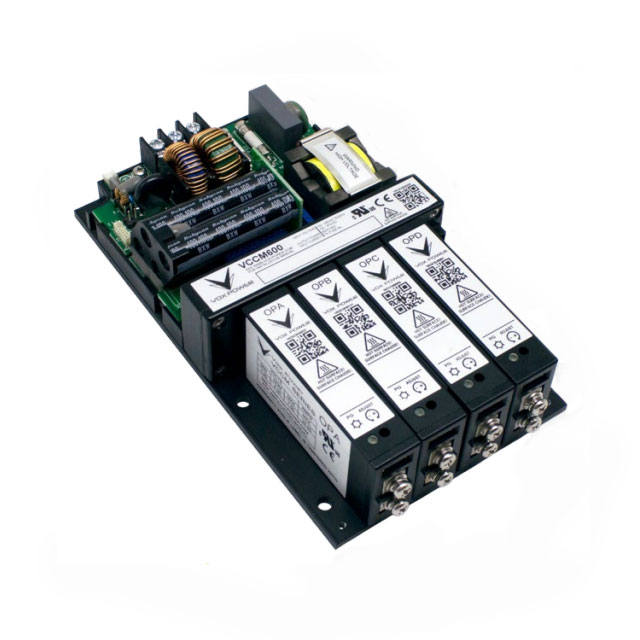

VCCM600M-CAA0-DK000

Active

Vox Power Ltd.

AC/DC CONVERTER 24V 2X5V 400W

Deep-Dive with AI

Search across all available documentation for this part.

VCCM600M-CAA0-DK000

Active

Vox Power Ltd.

AC/DC CONVERTER 24V 2X5V 400W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VCCM600M-CAA0-DK000	VCCM600 Series

Accessory Type	-	Thermal Interface
Applications	Medical	ITE (Commercial), Medical
Approval Agency	CB, CSA, UL, CE	CB, CSA, UL, CE
Contents	-	Accessories, Board(s), Cable(s)
Current - Output 1	-	3.75 - 25 A
Current - Output 2	25 A	3.75 - 25 A
Current - Output 3	25 A	3.75 - 25 A
Current - Output 4	-	3.75 - 15 A
Efficiency	90 %	90 %
Embedded	-	False
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
For Use With/Related Products	-	VCCM600 Series
Function	-	Configurable Power Supply
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	-	125 - 600 W
Primary Attributes	-	4-Channel (Quad)
Size / Dimension [x]	177.8 mm	177.8 mm
Size / Dimension [x]	7 "	7 "
Size / Dimension [y]	4 "	4 "
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Standard Number	60601-1	60950-1, 62368-1, 60601-1
Supplied Contents	-	Board(s), Accessories, Cable(s)
Type	Open Frame	Open Frame, Power Management
Utilized IC / Part	-	VCCM600M
Voltage - Input [Max]	370 VDC, 264 VAC	264 - 370 VDC
Voltage - Input [Min]	85 VAC, 120 VDC	85 - 120 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	5 - 48 V
Voltage - Output 2	5 V	5 - 48 V
Voltage - Output 3	5 V	5 - 48 V
Voltage - Output 4	-	5 - 24 V

VCCM600 Series

AC/DC CONVERTER 5V 48V 12V 425W

...

Part	Mounting Type	Efficiency	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 3	Power (Watts)	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Type	Standard Number	Current - Output 1	Current - Output 3	Number of Outputs	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Current - Output 2	Current - Output 4	Voltage - Output 4
Vox Power Ltd. VCCM600S-A0DB-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	12 V	425 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	15 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	3.75 A
Vox Power Ltd. VCCM600S-AACB-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	24 V	550 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	7.5 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	25 A	15 A	12 V
Vox Power Ltd. VCCM600M-C0CD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	48 V	450 W	24 V	-40 °C	70 °C	4000 V	Open Frame	60601-1		3.75 A	3	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	24 V	7.5 A
Vox Power Ltd. VCCM600S-0BBD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	48 V	450 W	12 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	3.75 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	15 A
Vox Power Ltd. VCCM600M-CDBD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	12 V	600 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60601-1		15 A	4	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	24 V	3.75 A	3.75 A
Vox Power Ltd. VCCM600M-AAAA-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	500 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60601-1	25 A	25 A	4	Medical	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	25 A		5 V
Vox Power Ltd. VCCM600S-BD0C-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	24 V	450 W	48 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	7.5 A	3	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	3.75 A
Vox Power Ltd. VCCM600S-ACAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	550 W	24 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	25 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	5 V	7.5 A	3.75 A
Vox Power Ltd. VCCM600S-BCAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V		24 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	7.5 A	3.75 A
Vox Power Ltd. VCCM600S-BAAD-DK000	Chassis Mount	90 %	Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input	1.57 "	4 "	40 mm	177.8 mm	7 "	101.6 mm	5 V	550 W	5 V	-40 °C	70 °C	4000 V	Open Frame	60950-1, 62368-1	15 A	25 A	4	ITE (Commercial)	CB, CE, CSA, UL	85 VAC, 120 VDC	264 VAC, 370 VDC	12 V	25 A	3.75 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	15	$ 460.97

Description

General part information

VCCM600 Series

Open Frame AC DC Converters 3 Output 24V 5V 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input

Documents

Technical documentation and resources

No documents available
