SLF12575T-150M4R7-H
LTBTDK Corporation
FIXED IND 15UH 4.7A 22.08MOHM SM
SLF12575T-150M4R7-H
LTBTDK Corporation
FIXED IND 15UH 4.7A 22.08MOHM SM
Description
General part information
SLF12575T-150M4R7-H

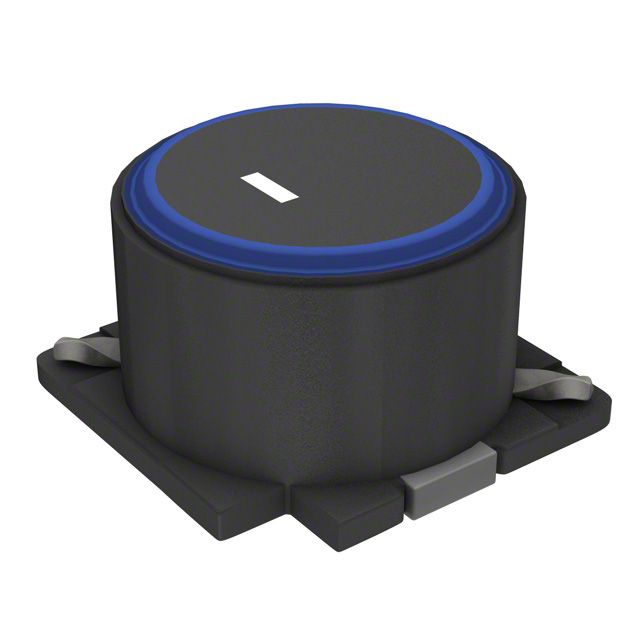

15 µH Shielded Drum Core, Wirewound Inductor 4.7 A 22.08mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SLF12575T-150M4R7-H |
|---|---|
| Current - Saturation (Isat) | 4.7 A |
| Current Rating | 4.7 A |
| DC Resistance (DCR) (Max) | 22.08 mOhm |
| Height - Seated (Max) | 0.309 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
