DSM186Q018W075PB
ActiveCornell Dubilier Knowles
18.6F, 18V, 112X67X19.5MM, STD M
DSM186Q018W075PB
ActiveCornell Dubilier Knowles
18.6F, 18V, 112X67X19.5MM, STD M
Description
General part information
DSM186Q018W075PB

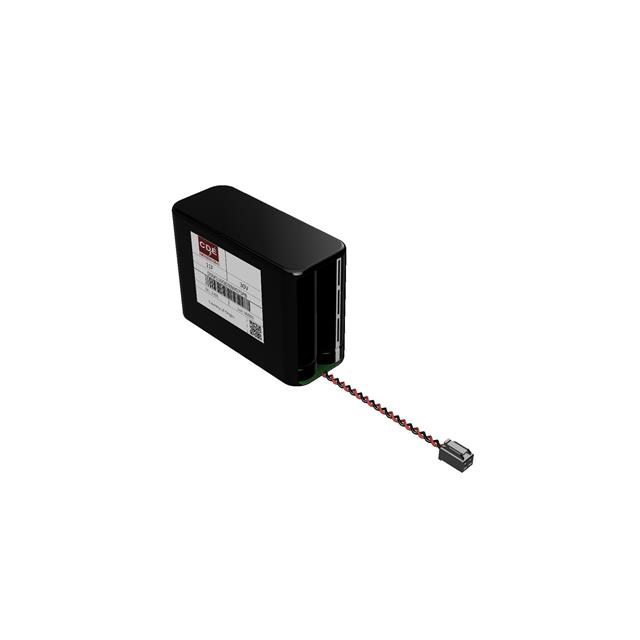

18.3 F (EDLC) Supercapacitor 18 V Module 97mOhm 1000 Hrs @ 65°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM186Q018W075PB |
|---|---|
| Capacitance | 18.3 F |
| ESR (Equivalent Series Resistance) | 97 mOhm |
| Height - Seated (Max) | 2.638 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Size / Dimension Length | 4.409 in |
| Size / Dimension Width | 0.768 in |
| Termination | Cable with Connector |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 18 VAC |
