Description
General part information

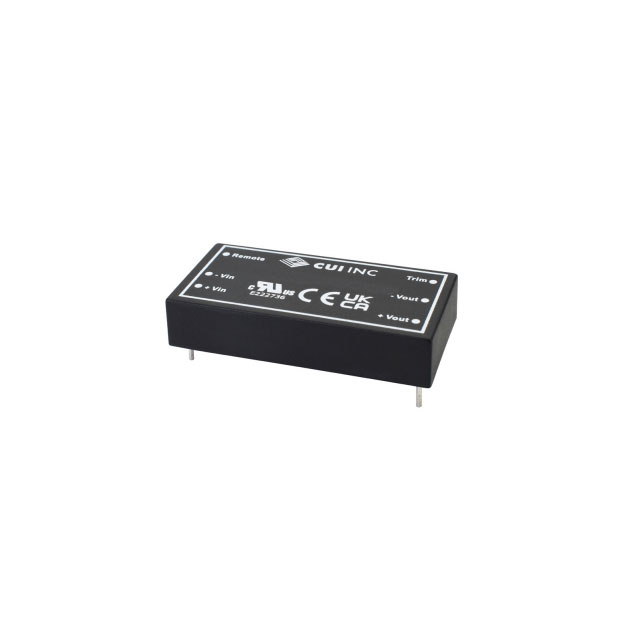

PRFE20W-O72-D15-D
Isolated Module DC DC Converter 2 Output 15V -15V 660mA, 660mA 8.5V - 160V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PRFE20W-O72-D15-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) | 660 mA |
| Efficiency | 89 % |
| Features | Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 160 VDC |
| Voltage - Input (Min) | 8.5 V |
| Voltage - Isolation | 4200 VDC |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
