4-794677-2

Active

TE Connectivity AMP Connectors

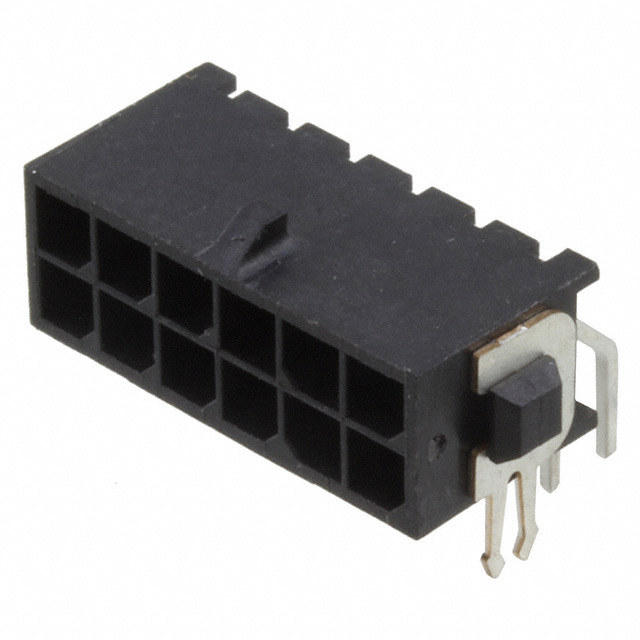

CONN HEADER R/A 12POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

4-794677-2

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 12POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.86
		10	$ 2.55
		169	$ 2.30
		507	$ 2.08
		1014	$ 1.86
		4901	$ 1.72

Description

General part information

794677 Series

Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794677-2	794677 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	7.37 mm	7.37 mm
Insulation Height	0.29 in	0.29 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	12	2 - 22
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794677 Series

CONN HEADER R/A 4POS 3MM

Part	Contact Type	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Insulation Color	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Material	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Termination	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Finish - Mating	Applications
TE Connectivity AMP Connectors 794677-4	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin-Lead	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	4	Through Hole, Right Angle	Tin-Lead	General Purpose
TE Connectivity AMP Connectors 3-794677-4	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	4	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 794677-2	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square			Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin-Lead	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	2	Through Hole, Right Angle	Tin-Lead	General Purpose
TE Connectivity AMP Connectors 4-794677-2	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	12	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 4-794677-0	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	10	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 4-794677-8	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	18	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 1-794677-2	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin-Lead	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	12	Through Hole, Right Angle	Tin-Lead	General Purpose
TE Connectivity AMP Connectors 5-794677-2	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	22 positions	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 3-794677-2	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square			Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	2	Through Hole, Right Angle		General Purpose
TE Connectivity AMP Connectors 794677-6	Male Pin	Varies by Wire Gauge	250 VDC	UL94 V-0	All	-40 °C	105 ░C	Header	Brass	Black	Square	0.118 in	3 mm	Nylon, Polyamide (PA)	Locking Ramp	7.37 mm	0.29 in	2	3 mm	0.118 in	Tin-Lead	Solder	Shrouded - 4 Wall	2.54 µm	100 µin	Board to Cable/Wire	2.54 çm	100 çin	6	Through Hole, Right Angle	Tin-Lead	General Purpose
