BU-190170014
ActiveMueller Electric Co
QUICK DISCONNECT TERMINAL, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM, 0.25" X 0.032", 22 AWG
BU-190170014
ActiveMueller Electric Co
QUICK DISCONNECT TERMINAL, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM, 0.25" X 0.032", 22 AWG
Description
General part information
BU-190170014

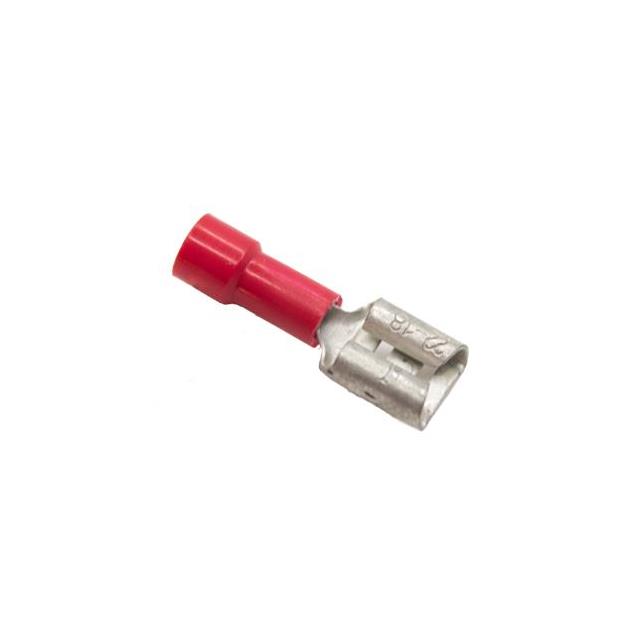

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Mating End Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-190170014 |
|---|---|
| Color | Red |
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
