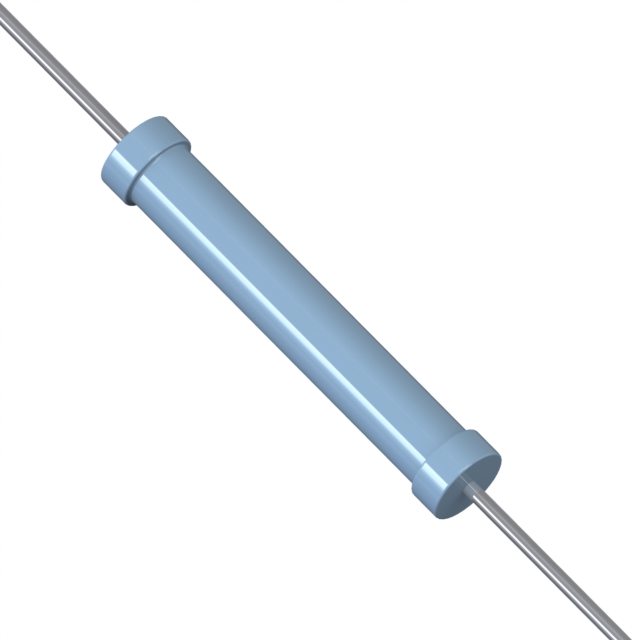

RNX0751M00FKLB
ObsoleteVishay Dale
RES 1M OHM 1% 2W AXIAL
RNX0751M00FKLB
ObsoleteVishay Dale
RES 1M OHM 1% 2W AXIAL
Description
General part information
RNX0751M00FKLB
1 MOhms ±1% 2W Through Hole Resistor Axial Flame Proof, High Voltage, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNX0751M00FKLB |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 225 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 1 MOhm |
| Size / Dimension Diameter | 0.14 in |
| Size / Dimension Length | 0.79 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
