General part information

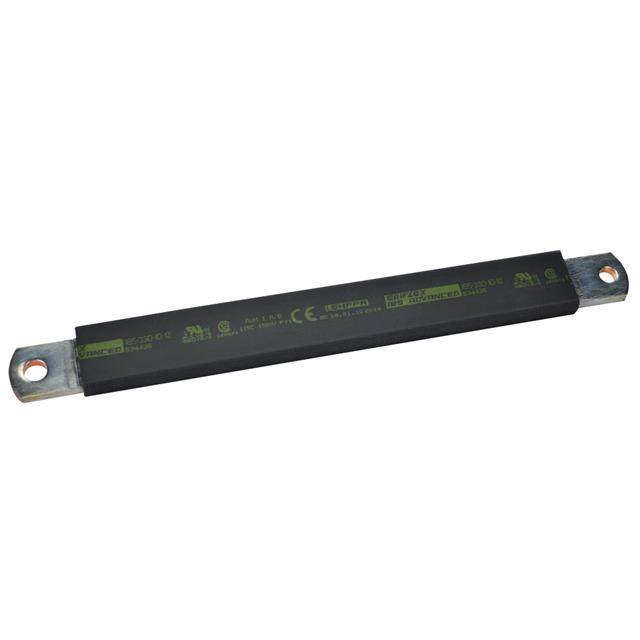

Flat, Busbar Ground Braid 1.260" (32.00mm) - Width X 2.1' (0.63m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	534438	- Series

Accessory Type	-	Insulator
Color	-	Natural
Diameter - Inside	-	0.006 in
Diameter - Inside	-	0.15 mm
Length	-	0.23 - 200 m
Length	-	0.5 - 328.1 ft
Length [x]	2.1 ft	0.3 - 82.02 ft
Length [x]	0.63 m	0.1 - 300 m
Material	Copper, Tinned	Copper, Tinned, Copper, Tin Plated, Copper, Polyester, Glass Filled, Polyamide (PA), Nylon, Copper, Tinned, PVC Coated
Material Flammability Rating	-	UL94 V-0
Number of Carriers	-	560 - 2848
Operating Temperature	-	70 °C
Size, Supplied	32 mm	32 mm
Size, Supplied	1.26 in	1.26 - 23 in
Size, Supplied	-	0.591 - 1.2 in
Size, Supplied	-	0.9 - 30.48 mm
Size, Supplied	-	22.86 mm
Size, Supplied	-	13 mm
Size, Supplied	-	0.512 in
Size, Supplied	-	0.906 in
Size, Supplied	-	1.575 - 28 in
Size, Supplied	-	40.01 mm
Size, Supplied	-	1.102 "
Size, Supplied [x]	Width	Width
Thickness	1.78 mm	1.5 - 200 mm
Thickness	0.07 in	0.059 - 0.2 in
Thickness	-	0.016 - 0.043 in
Thickness	-	0.4 - 1.1 mm
Type	Flat, Busbar	Flat, Busbar, Flat, Tubular, Sleeving, Insulated
Type Attributes	-	Convoluted - Braided
Wall Thickness	-	0.1 mm
Wall Thickness	-	0.004 in
Wire Gauge - Ends	-	1 - 8 AWG

IBSB ADVANCED INSULATED BRAIDED

Part	Size, Supplied [y]	Size, Supplied [y]	Wire Gauge - Ends	Thickness	Thickness	Type	Length	Length	Material	Number of Carriers	Size, Supplied [y]	Size, Supplied [custom]	Size, Supplied [custom]	Thickness [x]	Thickness [x]	Length [x]	Length [x]	Size, Supplied	Size, Supplied [x]	Size, Supplied	Size, Supplied	Size, Supplied [x]	Size, Supplied [x]
nVent 534412	0.79 in	20.07 mm	1 AWG	1.78 mm	0.07 in	Flat, Busbar	0.83 m	2.7 ft	Copper, Tinned
nVent 557280		0.9 "	2 AWG	2.54 mm	0.1 in	Flat	25 m	82 ft	Copper, Tinned	1980	22.86 mm
nVent 556600						Flat, Busbar	150 mm	0.5 ft	Copper, Tin Plated			13 mm	0.512 in	0.043 in	1.1 mm
nVent 534419	0.79 in	20.07 mm	2 aught AWG	1.78 mm	0.07 in	Flat, Busbar	0.83 m	2.7 ft	Copper, Tinned
nVent 557420			8 AWG			Tubular	25 m	82 ft	Copper	560
nVent 534425	0.94 in	23.88 mm		1.78 mm	0.07 in	Flat, Busbar			Copper, Tinned							2.1 ft	0.63 m
nVent 534438				1.78 mm	0.07 in	Flat, Busbar			Copper, Tinned							2.1 ft	0.63 m	32 mm	Width	1.26 in
nVent 556960	0.866 in	22 mm	2 AWG	2.01 mm	0.079 in	Flat, Busbar	50 cm	1.6 '	Copper, Tinned
nVent 556670				1.5 mm	0.059 in	Flat, Busbar			Copper, Tin Plated							0.3 ft	0.1 m			23 mm	0.906 in
nVent 563510						Flat, Busbar	0.25 m	0.8 ft	Copper, Tinned					0.016 in	0.4 mm							1.575 in	40.01 mm
