1-968696-3
ActiveTE Connectivity AMP Connectors

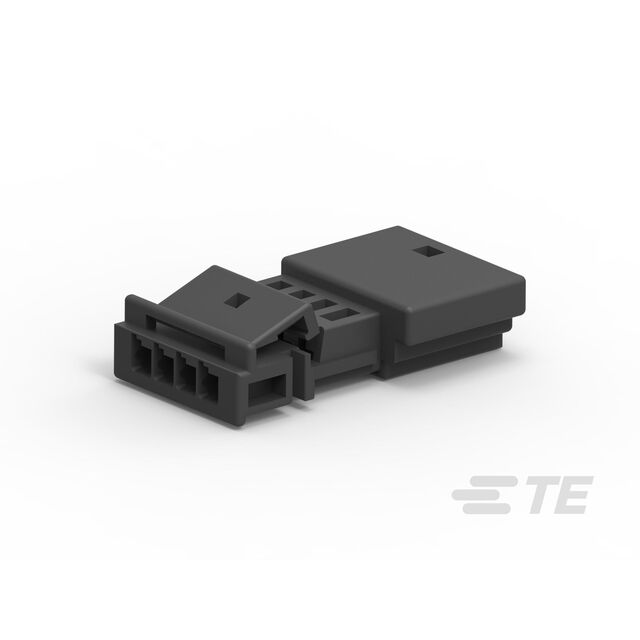

MQS STIFT-GEH 4P,BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-968696-3
ActiveTE Connectivity AMP Connectors
MQS STIFT-GEH 4P,BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-968696-3 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.61 | |||
| 2500 | $ 0.55 | |||
968696 Series
MQS STIFT-GEH 4P,BLACK
| Part | Color | Number of Rows | Connector Type | Contact Termination | Pitch [x] | Pitch [x] | Mounting Type | Fastening Type | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-968696-3 | Black | 1 | Plug | Crimp | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Latch Lock | 4 | Tab | -40 °C | 120 °C | Polybutylene Terephthalate (PBT), Glass Filled |
Description
General part information
968696 Series
4 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
