Description
General part information

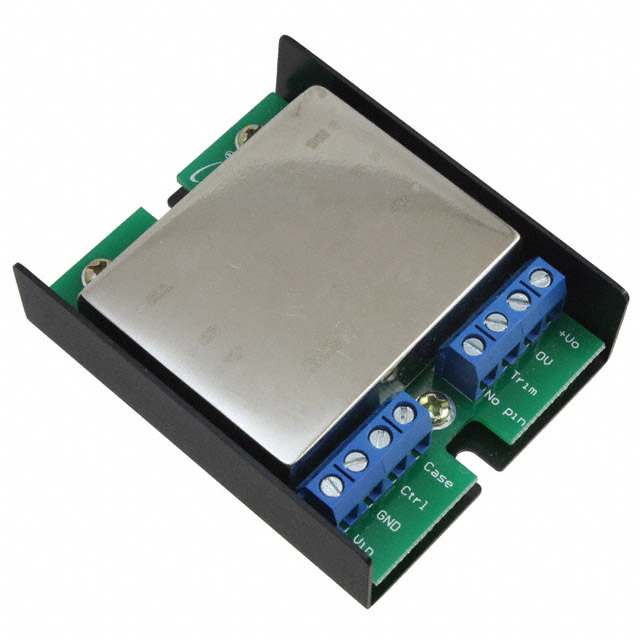

VYC30W-Q24-D15-T
Enclosed DC DC Converter 2 Output 15V -15V 1A, 1A 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VYC30W-Q24-D15-T |
|---|---|
| Current - Output (Max) | 1 A |
| Efficiency | 87 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.75 in |
| Size / Dimension Length | 2.66 in |
| Size / Dimension Width | 2.17 in |
| Type | Enclosed |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
