Description
General part information

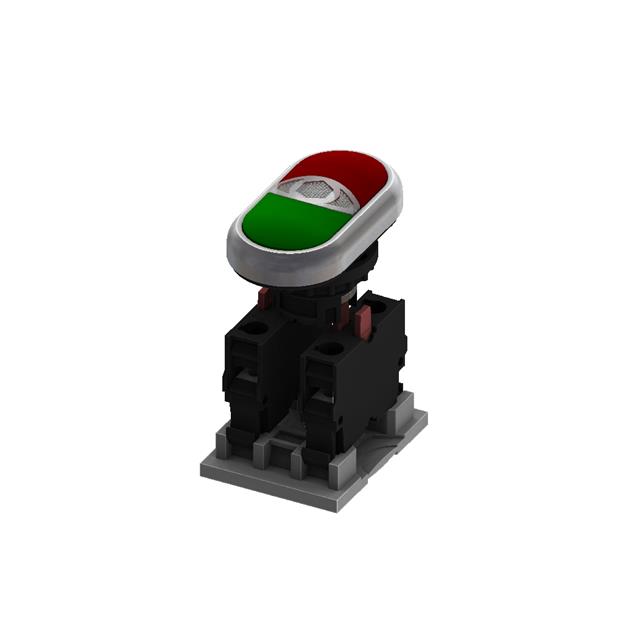

M22DP-SB11-GR
Pushbutton Switch SPST Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | M22DP-SB11-GR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Dual, Round, Button |
| Circuit | SPST |
| Color - Actuator/Cap | Red, Green |
| Current Rating | 6 A, 3 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
