1-1337613-0

Active

TE Connectivity AMP Connectors

CONN TNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337613-0

Body Finish	Nickel
Body Material	Brass
Cable Group	141A, RG-58C, Belden 9907
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

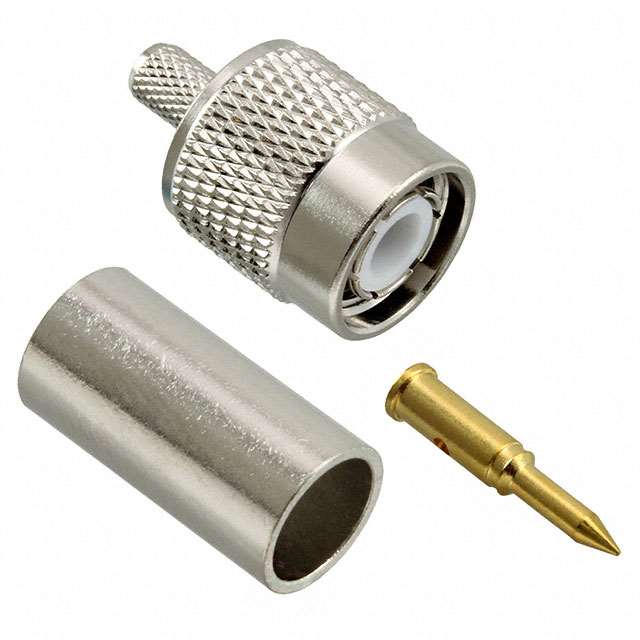

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN TNC PLUG STR 50 OHM SOLDER

Part	Mounting Type	Frequency - Max [Max]	Contact Termination	Impedance	Connector Type	Body Material	Housing Color	Insertion Loss	Number of Ports	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Voltage Rating	Includes	Center Contact Plating	Body Finish	Dielectric Material	Mating Cycles	Cable Group	Center Contact Material
TE Connectivity AMP Connectors 1-1337613-0	Free Hanging (In-Line)	11 GHz	Solder	50 Ohms	Male Pin, Plug	Brass	Silver	0.2 dB	1	TNC	-65 ░C	165 °C	Crimp	500 V	1 Connector, 1 Contact, 1 Ferrule	Gold	Nickel	Polytetrafluoroethylene (PTFE)	500	141A, Belden 9907, RG-58C	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
