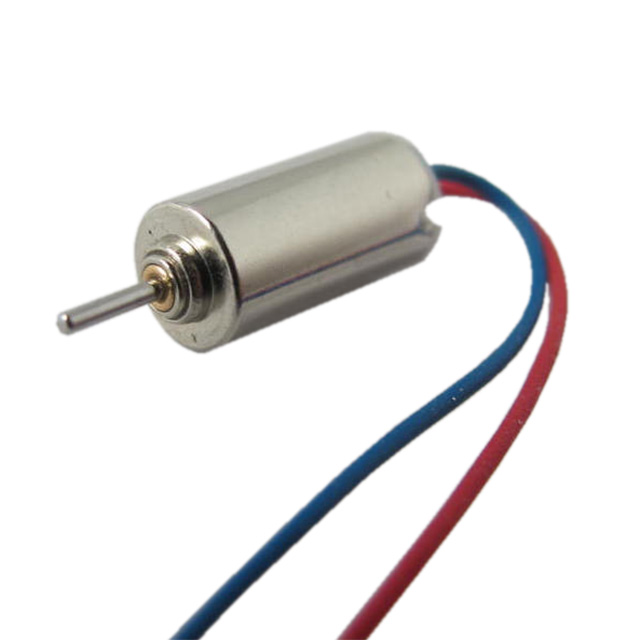

VQ4TL2BQ380001
ActiveVybronics Inc
STANDARD MOTOR 24783 RPM 3V
VQ4TL2BQ380001
ActiveVybronics Inc
STANDARD MOTOR 24783 RPM 3V
Description
General part information
VQ4TL2BQ380001
DC Motor Standard 24927 RPM 3VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | VQ4TL2BQ380001 |
|---|---|
| Diameter - Shaft | 0.024 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.157 in |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| RPM | 24927 RPM |
| Size / Dimension Diameter | 0.158 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads |
| Torque - Rated (mNm) | 0.014 mNm |
| Torque - Rated (oz-in) | 0.002 oz-in |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
