MDM-69PSM2
ActiveITT Cannon, LLC
D SUB CONNECTOR, MICRO D, PLUG, MDM SERIES, 69 CONTACTS, SOLDER CUP
MDM-69PSM2
ActiveITT Cannon, LLC
D SUB CONNECTOR, MICRO D, PLUG, MDM SERIES, 69 CONTACTS, SOLDER CUP
Description
General part information

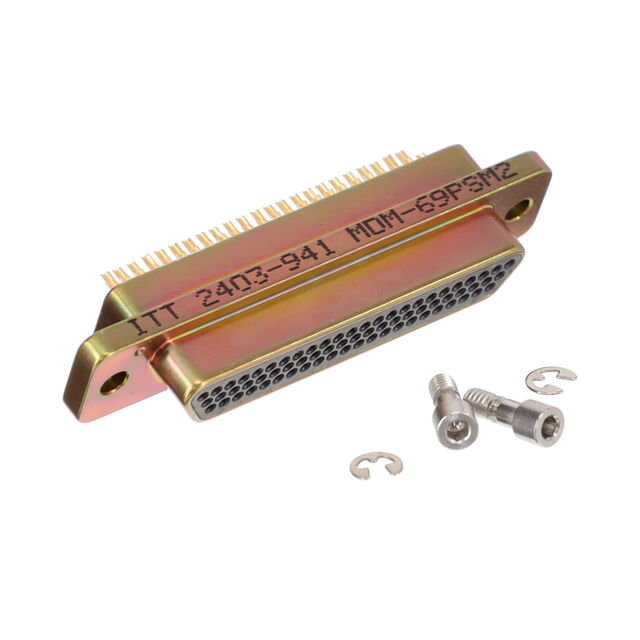

MDM-69PSM2
69 Position D-Type, Micro-D Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | MDM-69PSM2 |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.043 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Finish | Yellow Chromate Plated Cadmium |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Panel Mount |
| Number of Positions | 69 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Termination | Solder Cup |
| Wire Gauge | 26 AWG |
