8956.2

Active

Altech Corporation

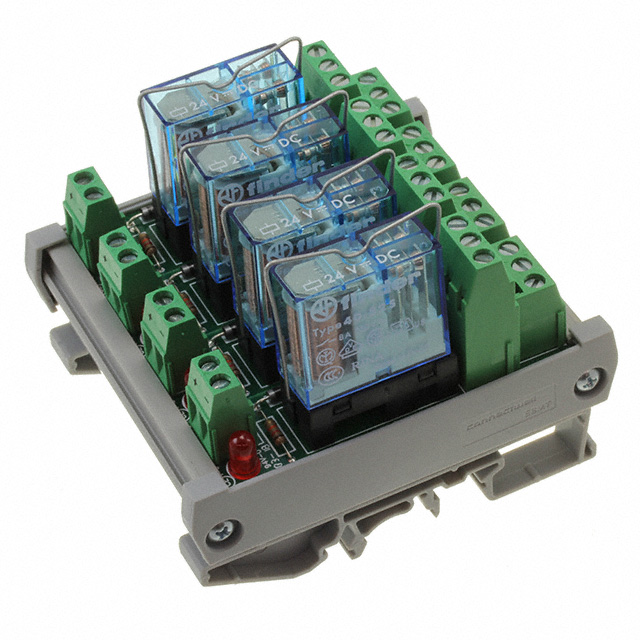

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Active

Altech Corporation

RELAY GEN PURPOSE DPDT 8A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8956.2	8956 Series

Coil Current	20 mA	20 - 29.3 mA
Coil Power	-	700 mW
Coil Resistance	1440 Ohms	820 - 1440 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A	8 A
Features	Socket Included	Socket Included
Load - Max Switching	192 W, 2000 VA	192 - 2000 W
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	16.8 VDC	16.8 - 19.2 VDC
Operate Time	-	15 ms
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	-	12 ms
Switching Voltage	250 VAC, 24 VDC	24 - 250 VAC
Switching Voltage	-	250 - 400 VDC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE DPDT 8A 24V

Part	Coil Current	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Must Operate Voltage	Relay Type	Features	Coil Resistance	Coil Voltage	Contact Rating (Current)	Termination Style	Mounting Type	Switching Voltage	Coil Type	Contact Material	Release Time	Coil Power	Operate Time	Switching Voltage [Max]
Altech Corporation 8956.2	20 mA	DPDT (2 Form C)	85 °C	-40 °C	192 W, 2000 VA	16.8 VDC	General Purpose	Socket Included	1440 Ohms	24 VDC	8 A	Screw Terminal	DIN Rail	24 VDC, 250 VAC	Non Latching	Silver Nickel (AgNi)
Altech Corporation 8956.2C	29.3 mA	DPDT (2 Form C)	70 °C	-40 °C		19.2 VDC			820 Ohms	24 VDC	8 A	Screw Terminal	DIN Rail			Gold (Au), Silver Tin Oxide (AgSnO)	12 ms	700 mW	15 ms	250 VDC, 400 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 176.74

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
