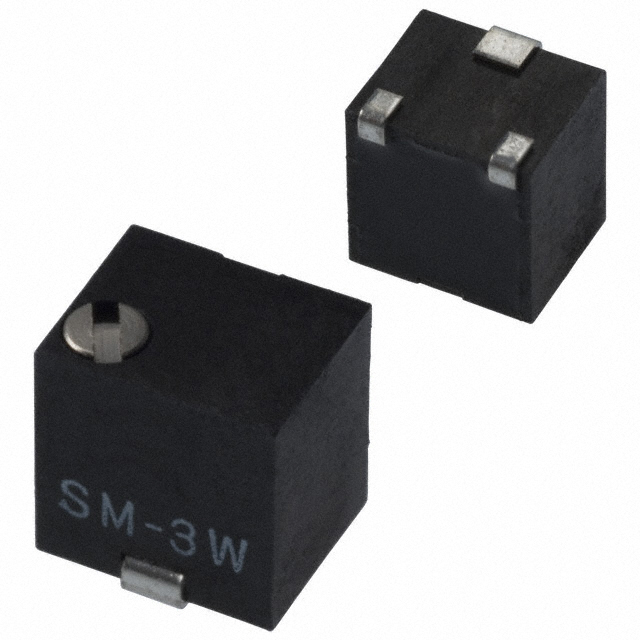

SM-3TW202
ActiveNidec Components Corporation
TRIMMER POT, CERMET, 2K, 11TURN, SMD
SM-3TW202
ActiveNidec Components Corporation
TRIMMER POT, CERMET, 2K, 11TURN, SMD
Description
General part information
SM-3TW202
2 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | SM-3TW202 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 11 turns |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Resistance | 2 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.154 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 20 % |
