Specification	65239-019LF

Color	Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Glass Filled, Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	38
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in
Row Spacing	0.1 in

65239 Series

Part	Number of Positions	Color	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Contact Type	Insulation Material	Pitch	Row Spacing	Mounting Type	Connector Type	Note
Amphenol ICC (FCI) 65239-107LF	14	Gray	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle
Amphenol ICC (FCI) 65239-036LF	72	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-007LF	14	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-006LF	12	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-010LF	20	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included

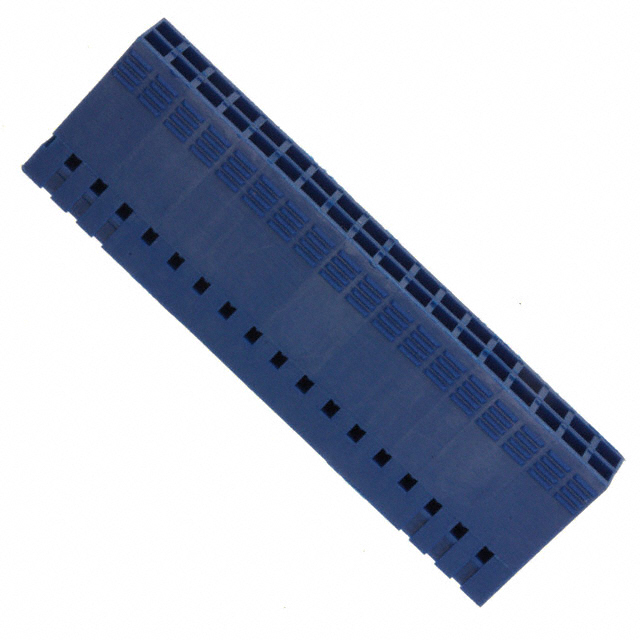

Amphenol ICC (FCI) 65239-018LF	36	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-003LF	6	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-216LF	32	Gray	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle
Amphenol ICC (FCI) 65239-012LF	24 pos	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
Amphenol ICC (FCI) 65239-026LF	52	Blue	Crimp	125 °C	-65 °C	2	Female Socket	Glass Filled Thermoplastic	0.1 in	0.1 in	Free Hanging (In-Line)	Receptacle	Contacts Not Included
