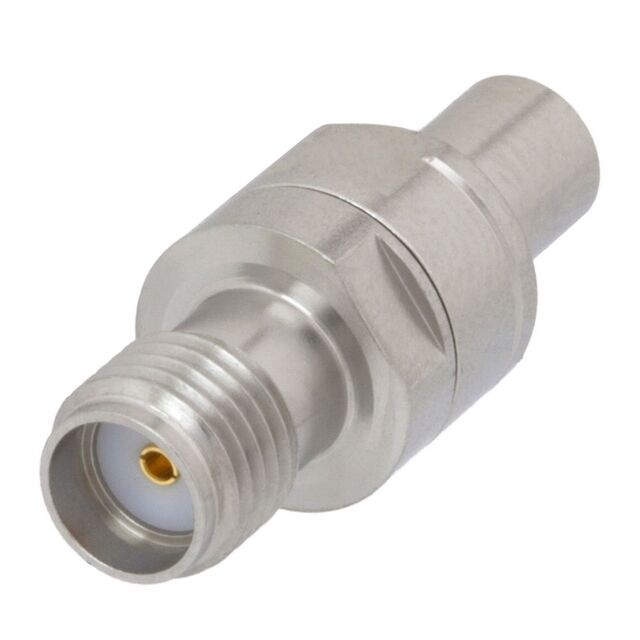

FMAD1007
ActiveFairview Microwave
ADAPT JACK-PLUG SMA SS 1.3 VSWR
FMAD1007
ActiveFairview Microwave
ADAPT JACK-PLUG SMA SS 1.3 VSWR
Description
General part information
FMAD1007
Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1007 |
|---|---|
| Adapter Series | SMA to SMP |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMP Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Straight |
