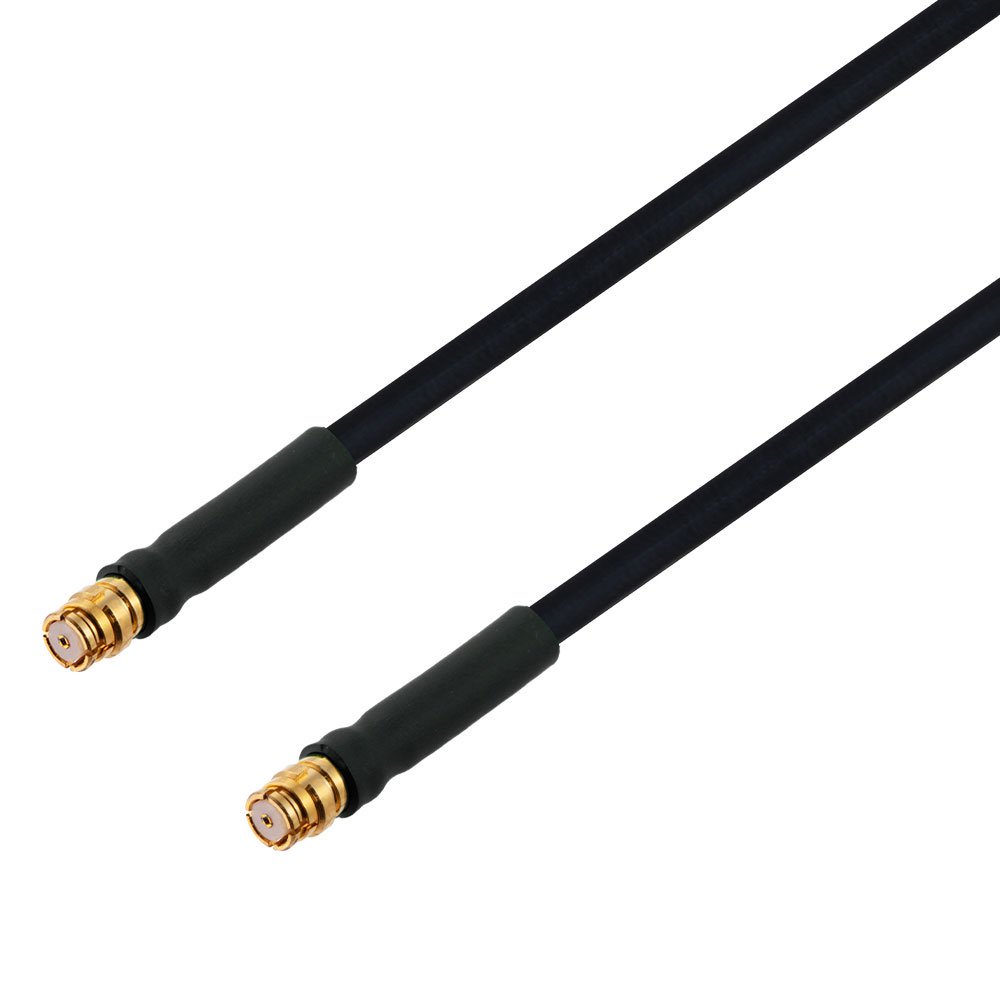

FMCA3200-12
ActiveFairview Microwave
CBL ASSY SMPJACK-SMPJACK 12
FMCA3200-12
ActiveFairview Microwave
CBL ASSY SMPJACK-SMPJACK 12
Description
General part information
FMCA3200-12
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3200-12 |
|---|---|
| 1st Connector | SMP Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMP |
