PE3C8743/RD-120
ActivePasternack

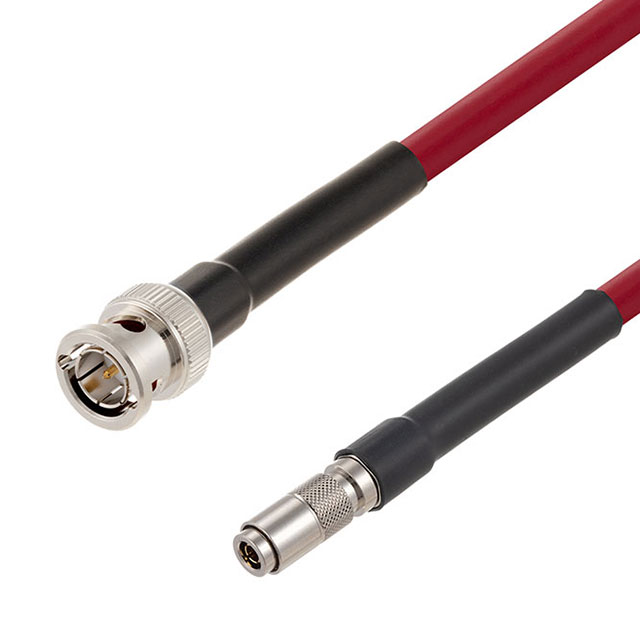

CBL ASSY 1.0/2.3-BNC PLG-PLG 10'
PE3C8743/RD-120
ActivePasternack
CBL ASSY 1.0/2.3-BNC PLG-PLG 10'
Description
General part information
PE3C8743/RD-120
Cable Assembly Coaxial 1.0/2.3 to BNC Belden 4694R 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3C8743/RD-120 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 1.0/2.3 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4694R |
| Color | Red |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 120 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | 1.0/2.3 to BNC |
