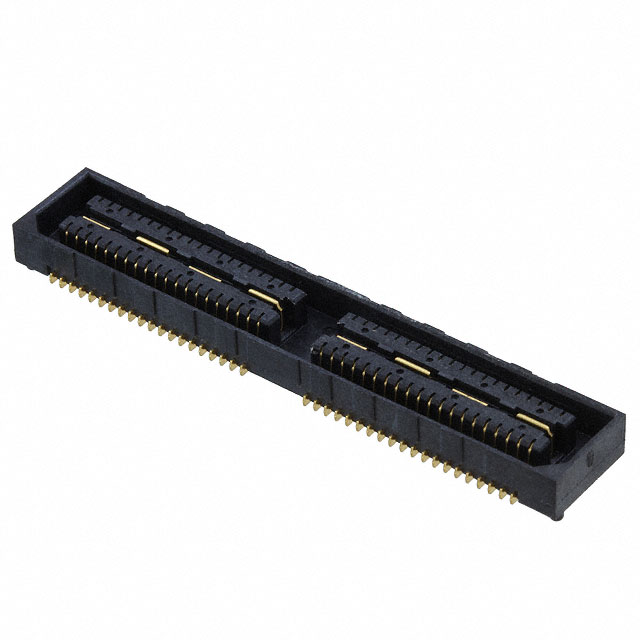

6-1658462-2

6-1658462-2

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS MSB0.80RC-ASY080FL GP 30 -TR

Find alt
6-1658462-2

6-1658462-2

Active
TE Connectivity AMP Connectors

BOARD TO BOARD & MEZZANINE CONNECTORS MSB0.80RC-ASY080FL GP 30 -TR

Find alt

Description

General part information

MICTOR SB Series

PCB Mount Receptacle, Vertical, Board-to-Board, 80 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Power & Signal

Technical Specifications

Parameters and characteristics for this part

Specification6-1658462-2
Connector TypeCenter Strip Contacts, Receptacle
Contact FinishGold
Contact Finish Thickness30 µin
FeaturesGround Bus (Plane), Board Guide
Height Above Board0.128 in
Mated Stacking Height Options5mm, 30mm, 14mm, 11mm, 19mm, 22mm, 8mm, 25mm, 16mm
Mounting TypeSurface Mount
Number of Positions80
Number of Rows2
Pitch0.031 in
