CABLE 348 RF-050-A-1

Active

GCT (Gradconn)

COAX CBL MHF1 TO SMA 1.9"

Search across all available documentation for this part.

Active

GCT (Gradconn)

COAX CBL MHF1 TO SMA 1.9"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CABLE 348 RF-050-A-1	CABLE 348 Series

1st Connector	SMA Jack	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	I-PEX MHF1 Plug, Right Angle	I-PEX MHF1 Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	1.13mm OD Coaxial Cable	1.13mm OD Coaxial Cable
Color	Gray	Gray
Frequency - Max [Max]	6000 MHz	6000 MHz
Length [x]	1.969 in	1.969 - 3.937 in
Length [x]	50 mm	0.1 - 50 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	I-PEX MHF1 to SMA	I-PEX MHF1 to SMA

COAX CBL MHF1 TO SMA 1.9"

Part	Style	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Color	2nd Connector Mounting Type	Cable Impedance	1st Contact Gender	1st Connector Mounting Type	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Contact Gender	Length [x]	Length [x]	1st Connector	2nd Connector
GCT (Gradconn) CABLE 348 RF-050-A-1	I-PEX MHF1 to SMA	50 Ohms	85 °C	-40 °C	1.13mm OD Coaxial Cable	Gray	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	Female	1.969 in	50 mm	SMA Jack	I-PEX MHF1 Plug, Right Angle
GCT (Gradconn) CABLE 348 RF-100-A-1	I-PEX MHF1 to SMA	50 Ohms	85 °C	-40 °C	1.13mm OD Coaxial Cable	Gray	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	Female	3.937 in	0.1 m	SMA Jack	I-PEX MHF1 Plug, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

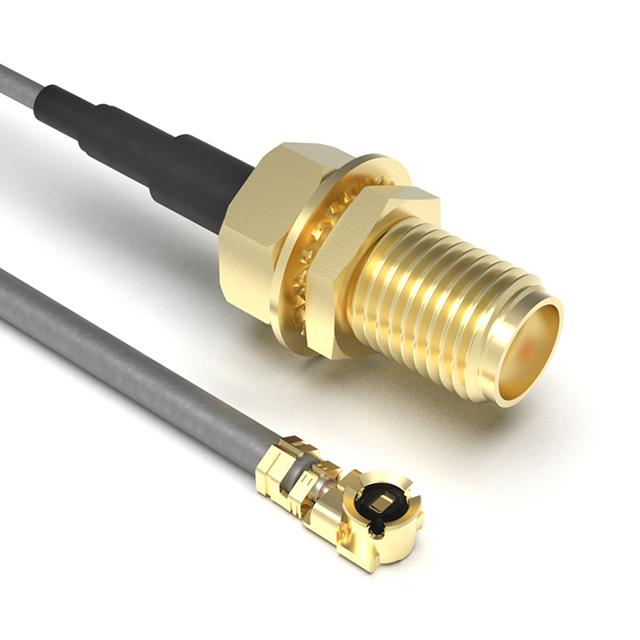

Cable Assembly Coaxial I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 1.969" (50.00mm)
