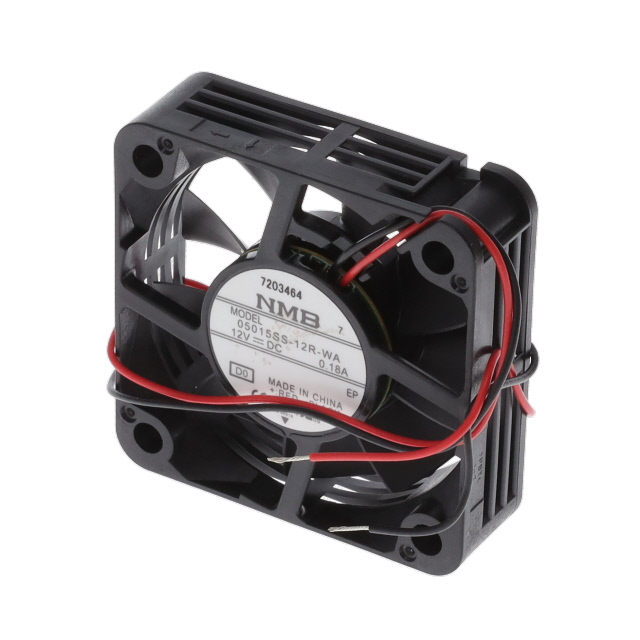

05015SS-12R-WA-D0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 15 MM, SLEEVE BEARING, 14.8 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

05015SS-12R-WA-D0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 15 MM, SLEEVE BEARING, 14.8 CFM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	05015SS-12R-WA-D0	05015SS Series

Air Flow	14.8 CFM	9.9 - 14.8 CFM
Air Flow	0.414 mł/min	0.277 - 0.414 m³/min
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	140 mA	0.09 - 140 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Auto Restart, Speed Sensor (Tach), Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	35.5 dB	25 - 35.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.68 W	1.08 - 1.68 W
RPM	6550 RPM	4550 - 6550 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	49.8 Pa	24.9 - 49.8 Pa
Static Pressure	0.2 in H2O	0.1 - 0.2 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.8 VDC
Voltage Range [Min]	6 VDC	6 VDC
Weight	-	0.055 lb
Weight	-	24.95 g
Width [y]	15.35 mm	15.35 mm

05015SS Series

FAN AXIAL 50X15.35MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Noise	Size / Dimension [z]	Size / Dimension [x]	Material - Blade	Current Rating (Amps)	RPM	Power (Watts)	Material - Frame	Air Flow	Air Flow	Lifetime @ Temp.	Fan Type	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Features	Termination	Weight	Weight
NMB TECHNOLOGIES 05015SS-12M-WT-00	13.8 VDC	6 VDC	Sleeve	25 dB(A)	50 mm	50 mm	Plastic	0.09 A	4550 RPM	1.08 W	Plastic	0.277 m³/min	9.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.1 in H2O	24.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart, Speed Sensor (Tach)	3 Wire Leads
NMB TECHNOLOGIES 05015SS-12N-WL-00	13.8 VDC	6 VDC	Sleeve	27.5 dB(A)	50 mm	50 mm	Plastic	100 mA	5050 RPM	1.2 W	Plastic	0.305 mł/min	10.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart, Locked Rotor Sensor	3 Wire Leads
NMB TECHNOLOGIES 05015SS-12N-WT-00	13.8 VDC	6 VDC	Sleeve	27.5 dB(A)	50 mm	50 mm	Plastic	100 mA	5050 RPM	1.2 W	Plastic	0.305 mł/min	10.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart, Speed Sensor (Tach)	3 Wire Leads
NMB TECHNOLOGIES 05015SS-12R-WA-D0	13.8 VDC	6 VDC	Sleeve	35.5 dB	50 mm	50 mm	Plastic	140 mA	6550 RPM	1.68 W	Plastic	0.414 mł/min	14.8 CFM	40000 Hrs	Tubeaxial	12 VDC	0.2 in H2O	49.8 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart	2 Wire Leads
NMB TECHNOLOGIES 05015SS-12M-WL-00	13.8 VDC	6 VDC	Sleeve	25 dB(A)	50 mm	50 mm	Plastic	0.09 A	4550 RPM	1.08 W	Plastic	0.277 m³/min	9.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.1 in H2O	24.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart, Locked Rotor Sensor	3 Wire Leads
NMB TECHNOLOGIES 05015SS-12M-WA-00	13.8 VDC	6 VDC	Sleeve	25 dB(A)	50 mm	50 mm	Plastic	0.09 A	4550 RPM	1.08 W	Plastic	0.277 m³/min	9.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.1 in H2O	24.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart	2 Wire Leads
NMB TECHNOLOGIES 05015SS-12R-WT-00	13.8 VDC	6 VDC	Sleeve	35.5 dB	50 mm	50 mm	Plastic	140 mA	6550 RPM	1.68 W	Plastic	0.414 mł/min	14.8 CFM		Tubeaxial	12 VDC	0.2 in H2O	49.8 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Speed Sensor (Tach)	3 Wire Leads	0.055 lb	24.95 g
NMB TECHNOLOGIES 05015SS-12N-WA-00	13.8 VDC	6 VDC	Sleeve	27.5 dB(A)	50 mm	50 mm	Plastic	100 mA	5050 RPM	1.2 W	Plastic	0.305 mł/min	10.9 CFM	40000 Hrs	Tubeaxial	12 VDC	0.12 in H2O	29.9 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart	2 Wire Leads
NMB TECHNOLOGIES 05015SS-12R-WL-D0	13.8 VDC	6 VDC	Sleeve	35.5 dB	50 mm	50 mm	Plastic	140 mA	6550 RPM	1.68 W	Plastic	0.414 mł/min	14.8 CFM	40000 Hrs	Tubeaxial	12 VDC	0.2 in H2O	49.8 Pa	70 °C	70 °C	-10 °C	-10 °C	15.35 mm	Auto Restart, Locked Rotor Sensor	3 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.97
		10	$ 5.77
		25	$ 5.60
		50	$ 5.27
		240	$ 4.73
		480	$ 4.67
		720	$ 4.37
Newark	Each	1	$ 8.26
		5	$ 8.01
		10	$ 7.77
		25	$ 7.56
		50	$ 7.40

Description

General part information

05015SS Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Sleeve 14.8 CFM (0.414m³/min) 2 Wire Leads
