M24308/24-5F
ActiveTE Connectivity Aerospace, Defense and Marine

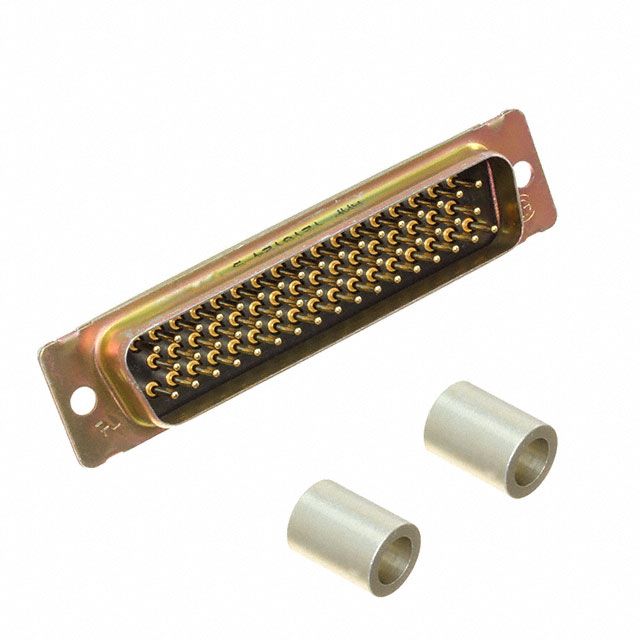

CONN D-SUB PLUG 50POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/24-5F
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB PLUG 50POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/24-5F | M24308/24 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Material | Brass | Brass |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 50 | 9 - 50 |
| Number of Rows | 3 | 2 - 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish [custom] | Steel | Steel |
| Shell Material, Finish [custom] | Cadmium Plated | Cadmium Plated |
| Shell Size, Connector Layout | 5 | 2 - 5 |
| Shell Size, Connector Layout | - | DE, E, DB, B |
| Shell Size, Connector Layout | - | 1 - 3 |
| Shell Size, Connector Layout | - | 4 (DC, C) |
| Termination | Solder | Solder |
M24308/24 Series
CONN D-SUB PLUG 15POS VERT SLDR
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Color | Contact Finish | Flange Feature | Connector Style | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Material | Current Rating (Amps) | Contact Type | Connector Type | Shell Size, Connector Layout | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine M24308/24-8F | 50 µin | 1.27 µm | Through Hole | 2 | Black | Gold | Housing/Shell (Unthreaded) | D-Sub | Steel | Cadmium Plated | Brass | 5 A | Signal | Male Pins, Plug | 2 | 15 | -55 °C | 125 °C | Solder | |||
TE Connectivity Aerospace, Defense and Marine M24308/24-7F | 50 µin | 1.27 µm | Through Hole | 2 | Black | Gold | Housing/Shell (Unthreaded) | D-Sub | Steel | Cadmium Plated | Brass | 5 A | Signal | Male Pins, Plug | 9 | -55 °C | 125 °C | Solder | DE, E | 1 | ||
TE Connectivity Aerospace, Defense and Marine M24308/24-9F | 50 µin | 1.27 µm | Through Hole | 2 | Black | Gold | Housing/Shell (Unthreaded) | D-Sub | Steel | Cadmium Plated | Brass | 5 A | Signal | Male Pins, Plug | -55 °C | 125 °C | Solder | B, DB | 3 | |||
TE Connectivity Aerospace, Defense and Marine M24308/24-10F | 50 µin | 1.27 µm | Through Hole | 2 | Black | Gold | Housing/Shell (Unthreaded) | D-Sub | Steel | Cadmium Plated | Brass | 5 A | Signal | Male Pins, Plug | 37 | -55 °C | 125 °C | Solder | 4 (DC, C) | |||
TE Connectivity Aerospace, Defense and Marine M24308/24-5F | 50 µin | 1.27 µm | Through Hole | 3 | Black | Gold | Housing/Shell (Unthreaded) | D-Sub | Steel | Cadmium Plated | Brass | 5 A | Signal | Male Pins, Plug | 5 | 50 | -55 °C | 125 °C | Solder |
