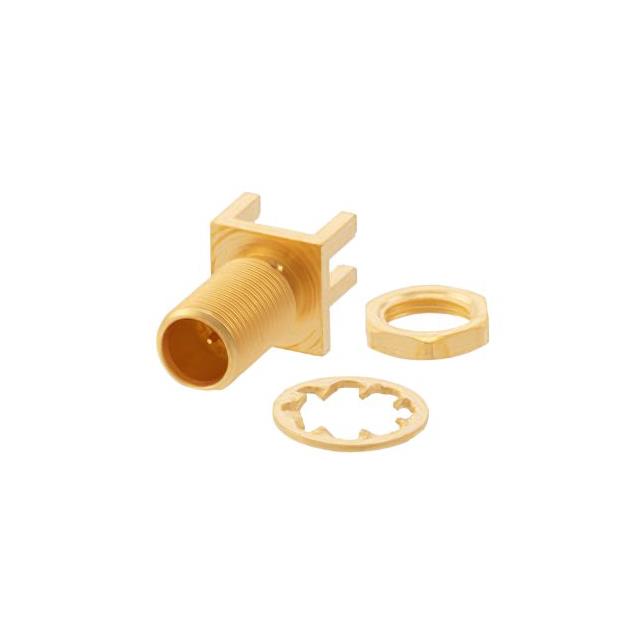

PE44377
ActivePasternack
RP MCX JACK BULKHEAD CONNECTOR S
PE44377
ActivePasternack
RP MCX JACK BULKHEAD CONNECTOR S
Description
General part information
PE44377
RP-MCX Connector Jack, Male Pin 50 Ohms Board Edge, End Launch; Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44377 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-MCX |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Board Edge, End Launch, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
