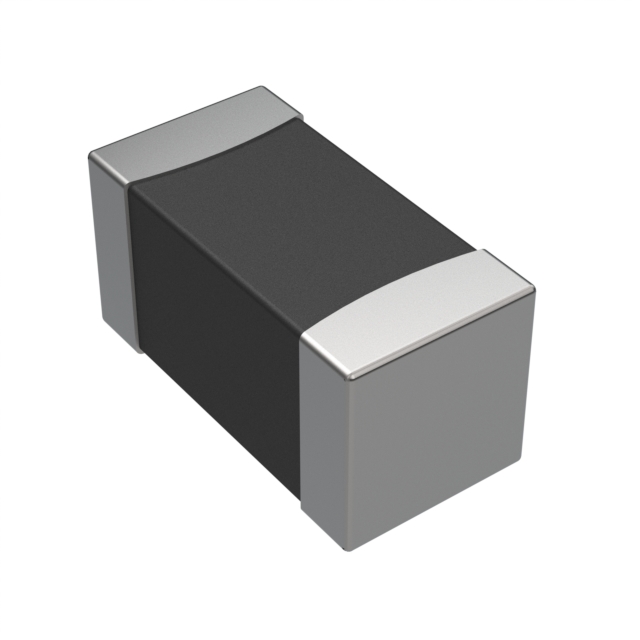

GZ1608D301CTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FERRITE BEAD 300 OHM 0603 1LN
GZ1608D301CTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FERRITE BEAD 300 OHM 0603 1LN
Description
General part information
GZ1608D301CTF
300 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 500mA 350mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | GZ1608D301CTF |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 350 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.037 in |
| Impedance | 300 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
