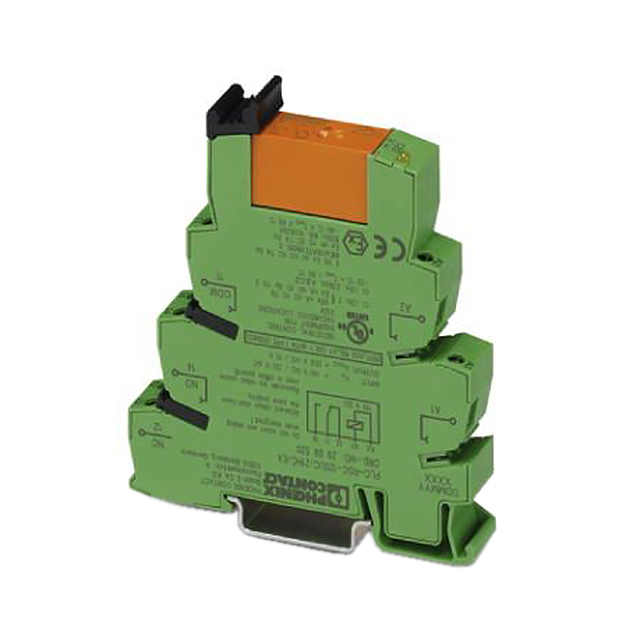

Specification	2909520

Approval Agency	CE, UKCA
Coil Current	4.5 mA
Coil Resistance	26.66 kOhms
Coil Type	Non Latching
Coil Voltage	120 V
Coil Voltage (Type)	AC, DC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Socket Included, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	250 VDC
Termination Style	Screw Terminal

29095 Series

Part	Coil Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Release Time	Operate Time	Mounting Type	Contact Rating (Current)	Termination Style	Contact Form	Coil Type	Coil Current	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Features	Approval Agency	Coil Voltage	Contact Material	Relay Type	Coil Voltage (Type)
Phoenix Contact 2909527	784.3 Ohms	60 °C	-40 °C	8 ms	5 ms	DIN Rail	6 A	Spring Terminal	1 C Form SPDT	Non Latching	15.3 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VAC	Silver Tin Oxide (AgSnO)	General Purpose
Phoenix Contact 2909517	364 Ohms	60 °C	-40 °C	10 ms	8 ms	DIN Rail	6 A	Screw Terminal	2 2 Form C C DPDT Form	Non Latching	33 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VAC	Silver Nickel (AgNi)	General Purpose
Phoenix Contact 2909513	364 Ohms	60 °C	-40 °C	10 ms	8 ms	DIN Rail	6 A	Spring Terminal	2 2 Form C C DPDT Form	Non Latching	33 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VAC	Silver Nickel (AgNi)	General Purpose
Phoenix Contact 2909525	34.29 kOhms	60 °C	-40 °C	15 ms	6 ms	DIN Rail	6 A	Screw Terminal	1 C Form SPDT	Non Latching	3.5 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	120 V	Silver Tin Oxide (AgSnO)	General Purpose	AC DC
Phoenix Contact 2909515	26.67 kOhms	60 °C	-40 °C	10 ms	7 ms	DIN Rail	6 A	Spring Terminal	2 2 Form C C DPDT Form	Non Latching	4.5 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	120 V	Silver Nickel (AgNi)	General Purpose	AC DC
Phoenix Contact 2909532	1333 Ohms	60 °C	-40 °C	10 ms	8 ms	DIN Rail	10 A	Spring Terminal	1 C Form SPDT	Non Latching	18 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	24 VDC	Silver Nickel (AgNi)	General Purpose
Phoenix Contact 2909526	71.875 kOhms	55 °C	-40 °C	15 ms	7 ms	DIN Rail	6 A	Screw Terminal	1 C Form SPDT	Non Latching	3.2 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	230 VDC	Silver Tin Oxide (AgSnO)	General Purpose	AC DC
Phoenix Contact 2909534	51.11 kOhms	55 °C	-40 °C	10 ms	7 ms	DIN Rail	10 A	Spring Terminal	1 C Form SPDT	Non Latching	4.5 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	230 VDC	Silver Nickel (AgNi)	General Purpose	AC DC
Phoenix Contact 2909511	26.66 kOhms	60 °C	-40 °C	10 ms	7 ms	DIN Rail	6 A	Screw Terminal	2 2 Form C C DPDT Form	Non Latching	4.5 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	120 V	Silver Nickel (AgNi)	General Purpose	AC DC
Phoenix Contact 2909531	364 Ohms	60 °C	-40 °C	10 ms	8 ms	DIN Rail	10 A	Spring Terminal	1 C Form SPDT	Non Latching	33 mA	250 VAC	250 VDC	Lighted Indicator Socket Included	CE UKCA	12 VAC	Silver Nickel (AgNi)	General Purpose
