BFVLM5AR2TOR
ActiveAmphenol TPC Wire & Cable
CONN SPADE 1614AWG #10 STUD BLUE
BFVLM5AR2TOR
ActiveAmphenol TPC Wire & Cable
CONN SPADE 1614AWG #10 STUD BLUE
Description
General part information
BFVLM5AR2TOR

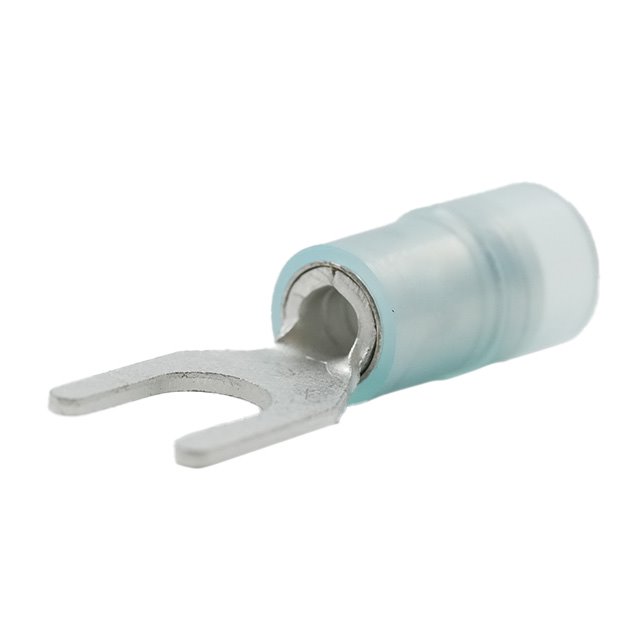

Blue 10 Stud Spade Terminal Connector 14-16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | BFVLM5AR2TOR |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Butted Seam |
| Insulation | Insulated |
| Length - Overall | 0.886 in |
| Material - Insulation | PVC, Poly-Vinyl Chloride |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Standard |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
