794816-2
ActiveTE Connectivity AMP Connectors

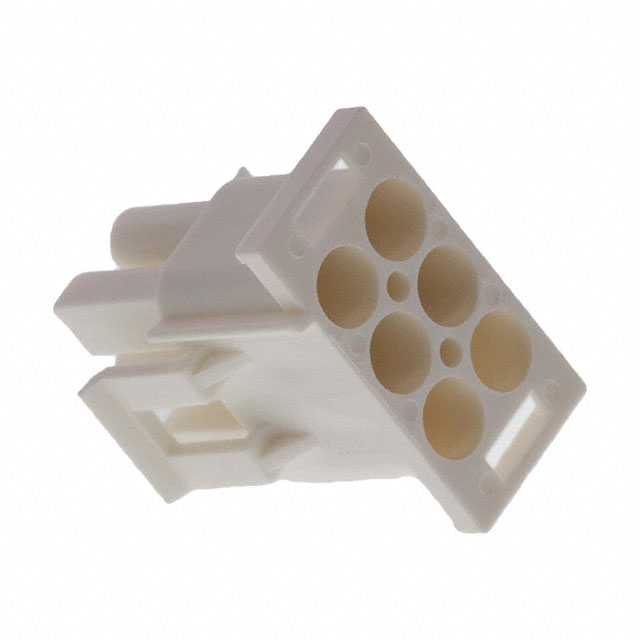

CONN PLUG HSG 6POS 6.35MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794816-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 6POS 6.35MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794816-2 | 794816 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin, Pin |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Glow Wire Compliant | Glow Wire Compliant |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.25 in | 0.25 in |
| Pitch [x] | 6.35 mm | 6.35 mm |
| Row Spacing | 6.35 mm | 6.35 mm |
| Row Spacing | 0.25 in | 0.25 in |
794816 Series
CONN PLUG HSG 6POS 6.35MM
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Note | Insulation Material | Color | Features | Contact Termination | Fastening Type | Pitch [x] | Pitch [x] | Number of Positions | Mounting Type | Contact Type | Row Spacing | Row Spacing | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794816-2 | 2 | 105 ░C | -55 °C | Contacts Not Included | Nylon, Polyamide (PA) | Natural | Glow Wire Compliant | Crimp | Latch Lock | 0.25 in | 6.35 mm | 6 | Free Hanging (In-Line) | Male Pin | 6.35 mm | 0.25 in | Plug |
TE Connectivity AMP Connectors 794816-1 | 2 | 105 ░C | -55 °C | Contacts Not Included | Nylon, Polyamide (PA) | Natural | Crimp | Latch Lock | 0.25 in | 6.35 mm | 6 | Free Hanging (In-Line) | Pin | 6.35 mm | 0.25 in | Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.35 | |||
Description
General part information
794816 Series
6 Rectangular Connectors - Housings Plug Natural 0.250" (6.35mm)
