1174L SL005

Active

ALPHA WIRE

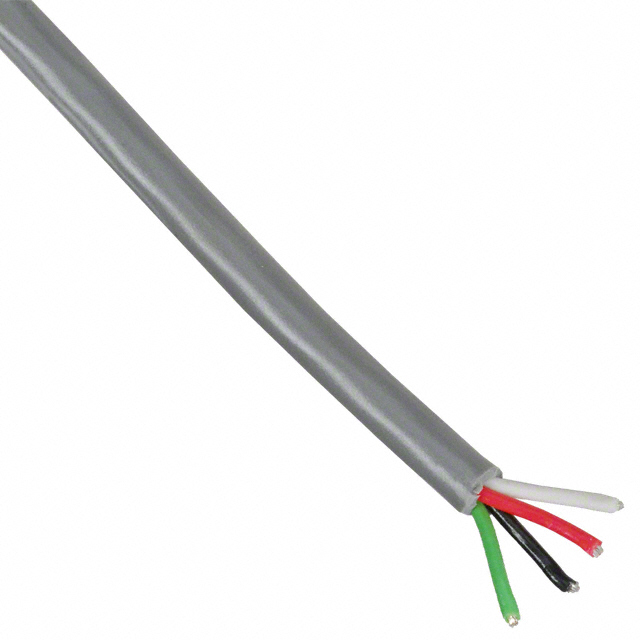

CABLE 4COND 22AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 22AWG SLATE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1174L SL005	1174L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.189 in	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm	4.8 mm
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	4	4
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 4COND 22AWG SLATE 100'

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Cable Type	Usage	Wire Gauge	Conductor Insulation	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]	Length	Length
ALPHA WIRE 1174L SL005	0.025 in	0.635 mm	Slate	Multi-Conductor	Communication, Control	22 AWG	Low Smoke Zero Halogen (LSZH)	Copper, Tinned	300 V	0.189 in	4.8 mm	7	30 AWG	4	30.5 m	100 ft
ALPHA WIRE 1174L SL002	0.025 in	0.635 mm	Slate	Multi-Conductor	Communication, Control	22 AWG	Low Smoke Zero Halogen (LSZH)	Copper, Tinned	300 V	0.189 in	4.8 mm	7	30 AWG	4	152.4 m	500 '
ALPHA WIRE 1174L SL001	0.025 in	0.635 mm	Slate	Multi-Conductor	Communication, Control	22 AWG	Low Smoke Zero Halogen (LSZH)	Copper, Tinned	300 V	0.189 in	4.8 mm	7	30 AWG	4			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
