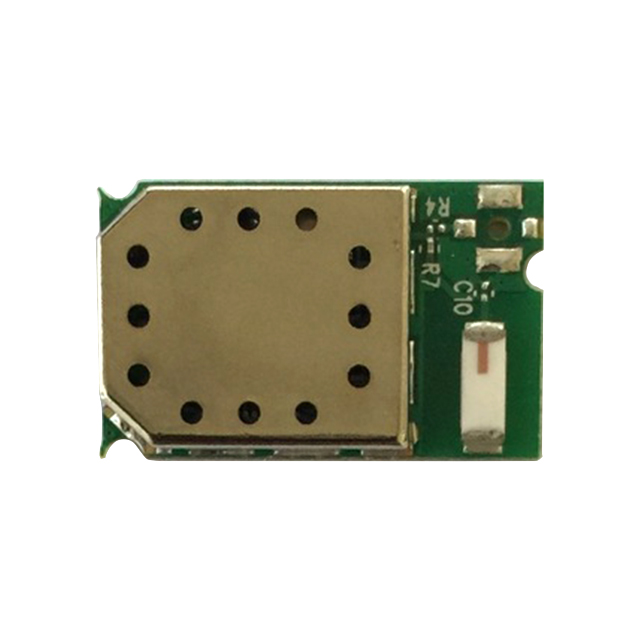

BT600I-21

Active

Fanstel Corp.

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD BLUETOOTH CHIP SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BT600I-21	BT600 Series

Antenna Type	Integrated, Chip	Antenna Not Included, Integrated, Chip
Data Rate	1 Mbps	1 Mbps
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.402 GHz	2.402 GHz
Memory Size	-	16 - 256 kB
Memory Size [custom]	16 kB	16 kB
Memory Size [custom]	256 kB	256 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Package / Case	44-SMD Module	44-SMD Module
Power - Output	-12 dBm	-12 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-91 dBm	-91 dBm
Serial Interfaces	UART, GPIO, ADC, SPI, I2C	UART, GPIO, ADC, SPI, I2C
Utilized IC / Part	nRF51822	nRF51822
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

RF TXRX MODULE BLUETOOTH SMD

Part	Protocol	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Mounting Type	Sensitivity	RF Family/Standard	Memory Size	Power - Output	Antenna Type	Memory Size [custom]	Memory Size [custom]
Fanstel Corp. BT600E	Bluetooth v4.0	44-SMD Module	3.6 V	1.8 V	1 Mbps	nRF51822	2.48 GHz	2.402 GHz	-25 °C	75 ░C	ADC, GPIO, I2C, SPI, UART	Surface Mount	-91 dBm	Bluetooth	16 kB, 128 kB	-12 dBm	Antenna Not Included
Fanstel Corp. BT600I-21	Bluetooth v4.0	44-SMD Module	3.6 V	1.8 V	1 Mbps	nRF51822	2.48 GHz	2.402 GHz	-25 °C	75 ░C	ADC, GPIO, I2C, SPI, UART	Surface Mount	-91 dBm	Bluetooth		-12 dBm	Integrated, Chip	16 kB	256 kB
Fanstel Corp. BT600I-23	Bluetooth v4.0	44-SMD Module	3.6 V	1.8 V	1 Mbps	nRF51822	2.48 GHz	2.402 GHz	-25 °C	75 ░C	ADC, GPIO, I2C, SPI, UART	Surface Mount	-91 dBm	Bluetooth	32 kB, 256 kB	-12 dBm	Integrated, Chip
Fanstel Corp. BT600I	Bluetooth v4.0	44-SMD Module	3.6 V	1.8 V	1 Mbps	nRF51822	2.48 GHz	2.402 GHz	-25 °C	75 ░C	ADC, GPIO, I2C, SPI, UART	Surface Mount	-91 dBm	Bluetooth	16 kB, 128 kB	-12 dBm	Integrated, Chip
