1827304
ActivePhoenix Contact
SPT 2 5/ 3-H-5 0 BK
1827304
ActivePhoenix Contact
SPT 2 5/ 3-H-5 0 BK
Description
General part information
1827304

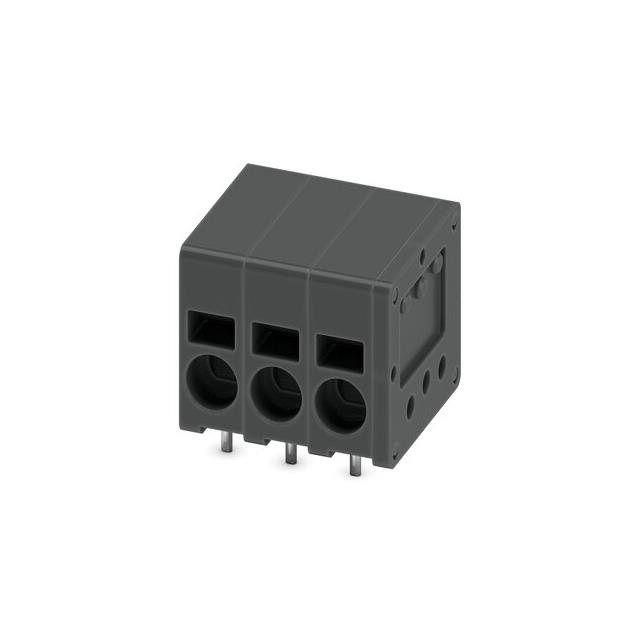

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1827304 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Current | 20 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Plating | Tin Plated |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
