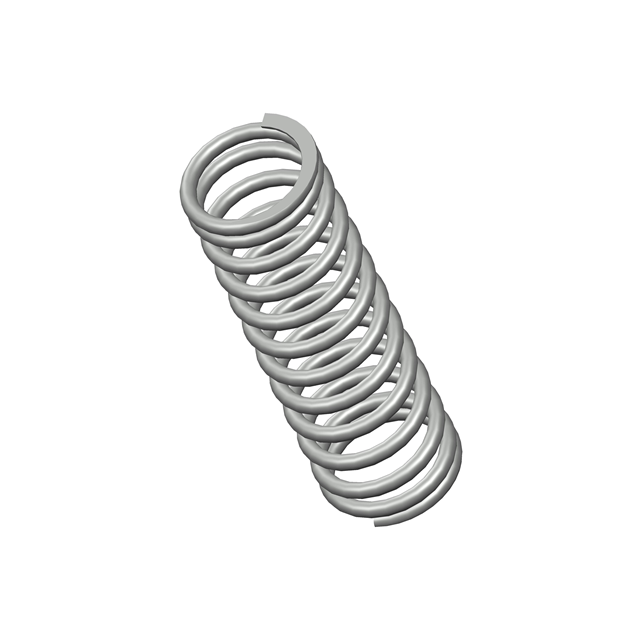

4286CS
ActiveCentury Spring Corp
COMP O= .484,L= 1.56,W= .055
4286CS
ActiveCentury Spring Corp
COMP O= .484,L= 1.56,W= .055
Description
General part information
4286CS
COMP O= .484,L= 1.56,W= .055
Technical Specifications
Parameters and characteristics for this part
| Specification | 4286CS |
|---|---|
| Diameter - Inside | 0.374 in |
| Diameter - Outside | 0.484 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 1.56 in |
| Material | Spring Steel |
| Rate (lbs/in) | 16 lbs/in |
| Type | Compression |
| Wire Diameter | 0.055 in |
