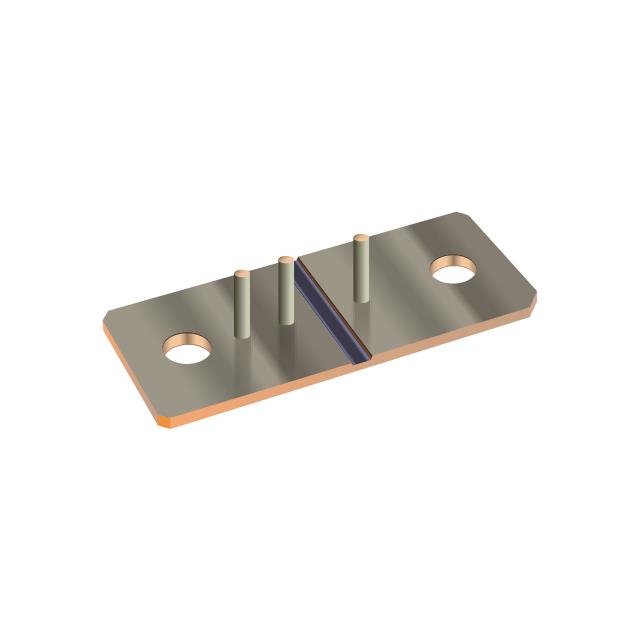

CSM2F-8536-L100J30
ActiveBourns Inc.
RES SHUNT 8536 100 UOHM 36W 3P
CSM2F-8536-L100J30
ActiveBourns Inc.
RES SHUNT 8536 100 UOHM 36W 3P
Description
General part information
CSM2F-8536-L100J30
100 µOhms ±5% 50W Shunt, Battery Specialized Resistor ±100ppm/°C Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CSM2F-8536-L100J30 |
|---|---|
| Applications | Automotive AEC-Q200 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 50 W |
| Resistance | 100 µOhms |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
