10159561-200121RLF

Active

Amphenol ICC (FCI)

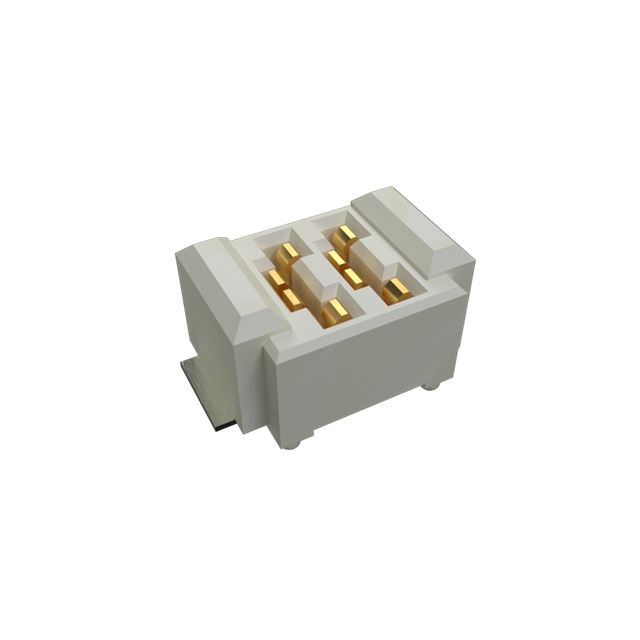

POWERSTAK VERTICAL RECEPTACLE 2P

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

POWERSTAK VERTICAL RECEPTACLE 2P

Technical Specifications

Parameters and characteristics for this part

Specification	10159561-200121RLF

Connector Type	Receptacle
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Female Blade Socket
Current Rating (Amps)	20 A
Fastening Type	Detent Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Natural
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Thermoplastic
Mated Stacking Heights	5 mm, 8 mm, 6 mm, 7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	100 V

Part	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions Loaded	Voltage Rating	Contact Shape	Connector Type	Insulation Material	Contact Finish - Post	Insulation Color	Number of Positions	Fastening Type	Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness - Post	Contact Type	Insulation Height	Insulation Height	Current Rating (Amps)	Mated Stacking Heights	Material Flammability Rating	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows
Amphenol ICC (FCI) 10159561-A00221RLF	Gold or Gold GXT™	0.203 Ám	8 Áin	Board Guide Pick and Place Solder Retention	All	100 V	Rectangular	Receptacle	Thermoplastic	Gold	Natural	10	Detent Lock	Surface Mount	Board to Board Cable	125 °C	-40 °C	Solder	Flash	Female Blade Socket	3.7 mm	0.146 "	20 A	9 mm 10 mm 11 mm 12 mm	UL94 V-0	Copper Alloy	0.079 in	2 mm	1
Amphenol ICC (FCI) 10159561-200121RLF	Gold or Gold GXT™	0.203 Ám	8 Áin	Board Guide Pick and Place Solder Retention	All	100 V	Rectangular	Receptacle	Thermoplastic	Gold	Natural	2	Detent Lock	Surface Mount	Board to Board Cable	125 °C	-40 °C	Solder	Flash	Female Blade Socket	3.7 mm	0.146 "	20 A	5 mm 6 mm 7 mm 8 mm	UL94 V-0	Copper Alloy	0.079 in	2 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold or Gold, GXT™
