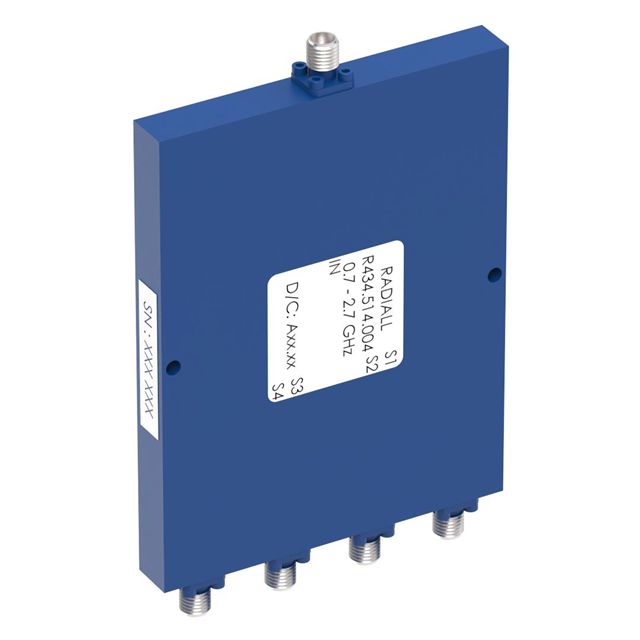

POWER DIVIDER 4W SMA 0.7-2.7GHZ

Find alt
R434514004

R434514004

Active
Radiall USA, Inc.

POWER DIVIDER 4W SMA 0.7-2.7GHZ

Find alt

Description

General part information

R434514004

RF Power Divider 700 MHz ~ 2.7 GHz Isolation (Min) 20dB, 1.4 VSWR (Max) Module, SMA Connectors

Technical Specifications

Parameters and characteristics for this part

SpecificationR434514004
Frequency (Max)2.7 GHz
Frequency (Min)700 MHz
Insertion Loss0.8 dB
Isolation (Min)20 dB
Package / CaseModule, SMA Connectors
Size / Dimension Height0.394 in
Size / Dimension Length3.898 in
Size / Dimension Width3 in
VSWR (Max)1.4
