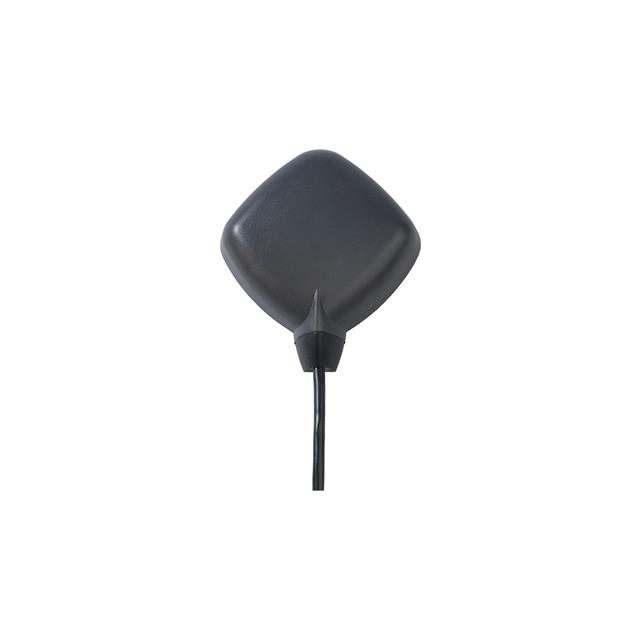

8117D

Active

Amphenol PCTEL

RF ANT 1.593GHZ MOD SMA MALE MAG

Search across all available documentation for this part.

Active

Amphenol PCTEL

RF ANT 1.593GHZ MOD SMA MALE MAG

Technical Specifications

Parameters and characteristics for this part

RF ANT 1.593GHZ MOD SMA MALE MAG

Part	Number of Bands	Height (Max) [Max]	Height (Max)	RF Family/Standard	Applications	Features	Ingress Protection	Gain [Min]	Gain [Max]	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Antenna Type	Frequency (Center/Band)
Amphenol PCTEL 8117D	1	0.535 in	13.6 mm	Navigation	GLONASS, GPS	Cable - 3m, Filter, LNA	IP67	-2 dBic	3 dBic	2 GHz	1 GHz	UHF	1.568 GHz	1.618 GHz	Magnetic	Module	1.593 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GLONASS, GPS Module SMA Male Magnetic
