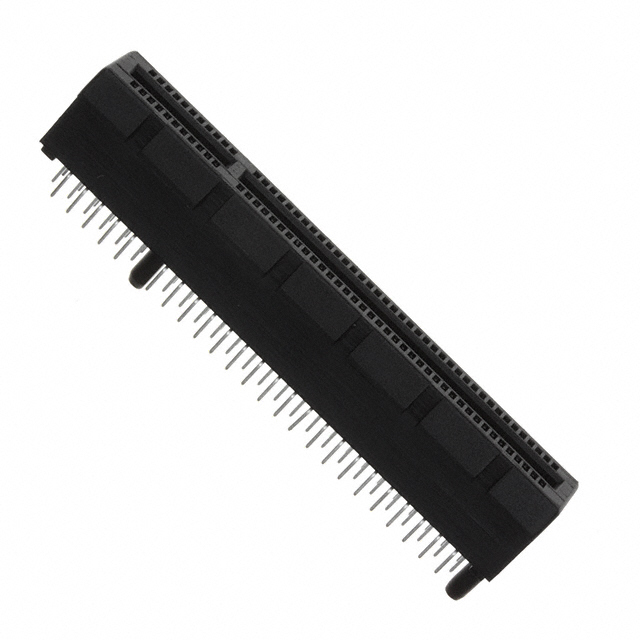

10018784-10102TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 98POS 0.039

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 98POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	10018784-10102TLF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Locking Ramp, Board Guide
Gender	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Through Hole
Number of Positions	98
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2400	$ 0.86

General part information

98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
