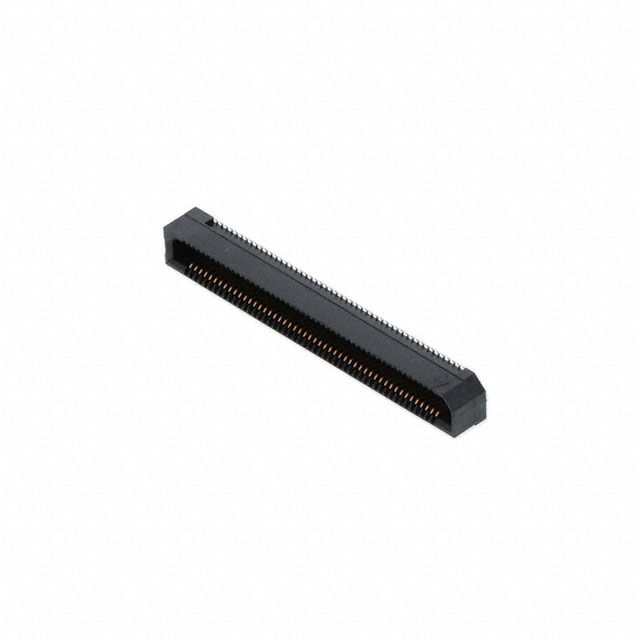

ERF8-050-05.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

ERF8-050-05.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-050-05.0-L-DV-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-060 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Socket

...

Part	Number of Rows	Number of Positions	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Samtec Inc. ERF8-050-05.0-L-DV-TR	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-013-09.0-L-DV-TR	2	26	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-070-09.0-L-DV-K-TR	2	140	Surface Mount	11 mm 14 mm 17 mm 18 mm 24 mm	Outer Shroud Contacts Socket	0.358 "	9.1 mm	Board Guide Pick and Place	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-05.0-S-DV	2	100	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-S-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-RA-EGP-TR	2	40	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Mounting Flange	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-050-03-L-D-RA-L-TR	2	100	Surface Mount Right Angle		Outer Shroud Contacts Socket	0.246 in	6.25 mm	Board Guide Latches Mounting Flange	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-060-05.0-S-DV-K-TR	2	120	Surface Mount	7 mm 10 mm 13 mm 14 mm 20 mm	Outer Shroud Contacts Socket	0.21 in	5.33 mm	Board Guide Pick and Place	30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-01-S-D-EM2-EGPS-TR	2	40	Board Edge Straddle Mount		Outer Shroud Contacts Socket				30 Áin	0.76 Ám	Gold	0.8 mm	0.031 in
Samtec Inc. ERF8-020-07.0-L-DV-TR	2	40	Surface Mount	9 mm 12 mm 15 mm 16 mm 22 mm	Outer Shroud Contacts Socket			Board Guide	10 Áin	0.25 Ám	Gold	0.8 mm	0.031 in	0.285 in	7.24 mm
