MAX9943EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated

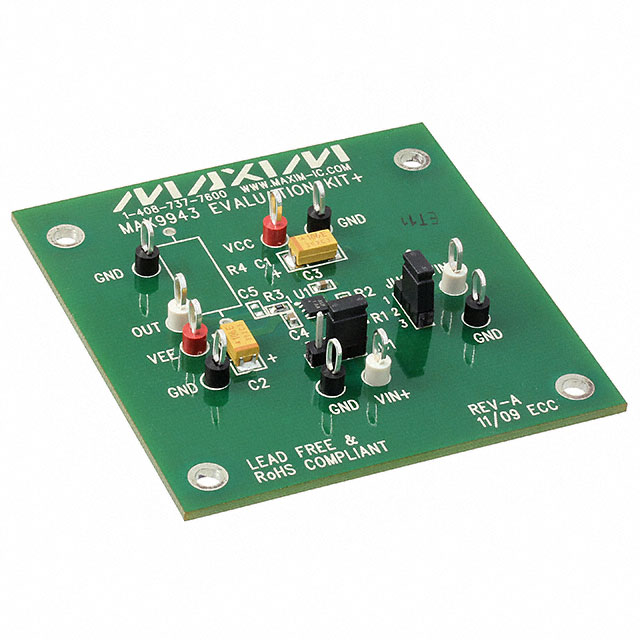

EVALUATION KIT FOR MAX9943
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9943EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9943
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9943EVKIT+ | MAX9943 Series |
|---|---|---|
| Amplifier Type | General Purpose | General Purpose |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Current - Input Bias | - | 4 nA |
| Current - Output / Channel | 20 mA | 20 - 60 mA |
| Current - Supply | - | 550 µA |
| Current - Supply (Main IC) | 550 µA | 550 µA |
| Gain Bandwidth Product | - | 2.4 MHz |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended, Rail-to-Rail | Rail-to-Rail, Single-Ended |
| Package / Case | - | 8-MSOP, 8-TSSOP |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-uMAX/uSOP, 6-TDFN (3x3) |
| Utilized IC / Part | MAX9943 | MAX9943 |
| Voltage - Input Offset | - | 20 çV |
| Voltage - Supply Span (Max) | - | 38 V |
| Voltage - Supply Span (Min) | - | 6 V |
| Voltage - Supply, Single/Dual (±) [Max] | 38 V, 19 V | 19 - 38 V |
| Voltage - Supply, Single/Dual (±) [Min] | 6 V, 3 V | 3 - 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 61.45 | |
MAX9943 Series
IC OPAMP GP 1 CIRCUIT 8UMAX
| Part | Output Type | Voltage - Input Offset | Voltage - Supply Span (Max) [Max] | Gain Bandwidth Product | Operating Temperature [Max] | Operating Temperature [Min] | Number of Circuits | Current - Input Bias | Current - Output / Channel | Supplier Device Package | Current - Supply | Voltage - Supply Span (Min) [Min] | Package / Case | Package / Case [custom] | Package / Case | Amplifier Type | Mounting Type | Utilized IC / Part | Supplied Contents | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Channels per IC | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9943AUA+ | Rail-to-Rail | 20 çV | 38 V | 2.4 MHz | 125 °C | -40 °C | 1 | 4 nA | 20 mA | 8-uMAX/uSOP | 550 µA | 6 V | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | General Purpose | Surface Mount | |||||||
Analog Devices Inc./Maxim Integrated MAX9943EVKIT+ | Rail-to-Rail, Single-Ended | 20 mA | General Purpose | MAX9943 | Board(s) | 550 µA | 19 V, 38 V | 3 V, 6 V | 1 - Single | Fully Populated | ||||||||||||||
Analog Devices Inc./Maxim Integrated MAX9943ATT+T | Rail-to-Rail | 20 çV | 38 V | 2.4 MHz | 125 °C | -40 °C | 1 | 4 nA | 60 mA | 6-TDFN (3x3) | 550 µA | 6 V | General Purpose | Surface Mount | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9943AUA+T | Rail-to-Rail | 20 çV | 38 V | 2.4 MHz | 125 °C | -40 °C | 1 | 4 nA | 20 mA | 8-uMAX/uSOP | 550 µA | 6 V | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | General Purpose | Surface Mount |
Description
General part information
MAX9943 Series
MAX9943 1 - Single Channels per IC General Purpose Amplifier Evaluation Board
