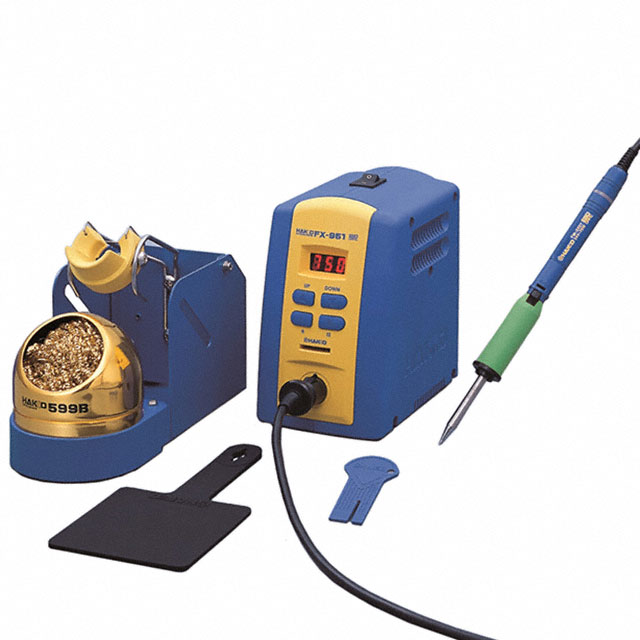

FX951-66

Active

American Hakko Products, Inc.

SOLDERING STATION 75W 1 CH 120V

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

SOLDERING STATION 75W 1 CH 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FX951-66	FX951 Series

Base Unit	FX-951	FX-951
Control/Display Type	Digital	Digital
Features	Auto Off, Low Temperature Alarm, Temperature Lockout	Temperature Lockout, Auto Off, Low Temperature Alarm
Number of Channels	1	1
Plug Type	NEMA 5-15	NEMA 5-15P, NEMA 5-15
Supplied Iron, Tweezer, Handle	FM2027-02	FM2027-02
Supplied Tips/Nozzles	Sold Separately	Sold Separately
Temperature Range [Max]	842 °F	842 °F
Temperature Range [Max]	450 °C	450 °C
Temperature Range [Min]	392 °F	392 °F
Temperature Range [Min]	200 °C	200 °C
Tip Cleaner	Scouring Pad	Not Included, Scouring Pad
Type	Soldering	Soldering
Voltage - Input	120 V	120 V
Voltage - Output	24 V	24 V
Wattage	75 W	75 W
Workstand	FH200-01	FH200-01

STATION ONLY,W/B2972&B2419,FX-95

Part	Supplied Tips/Nozzles	Base Unit	Tip Cleaner	Number of Channels	Plug Type	Type	Control/Display Type	Features	Voltage - Input	Supplied Iron, Tweezer, Handle	Workstand	Wattage	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Voltage - Output
American Hakko Products, Inc. FX951-98	Sold Separately	FX-951	Not Included	1	NEMA 5-15P	Soldering	Digital	Temperature Lockout
American Hakko Products, Inc. FX951-66	Sold Separately	FX-951	Scouring Pad	1	NEMA 5-15	Soldering	Digital	Auto Off, Low Temperature Alarm, Temperature Lockout	120 V	FM2027-02	FH200-01	75 W	392 °F	842 °F	200 °C	450 °C	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOLDERING STATION 75W 1 CH 120V
