794058-1
ActiveTE Connectivity AMP Connectors

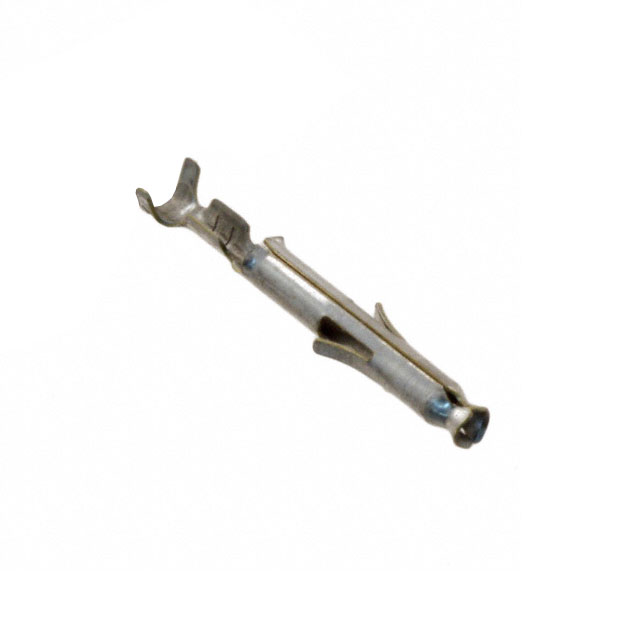

CONN SOCKET 26-30AWG TIN CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794058-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 26-30AWG TIN CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794058-1 | 794058 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 26 AWG | 26 AWG |
794058 Series
CONN SOCKET 26-30AWG GOLD CRIMP
| Part | Contact Finish | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Type | Pin or Socket | Contact Material |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794058-0 | Gold | Crimp | 0.76 Ám | 30 Áin | 26 AWG | 30 AWG | Stamped | Socket | Brass |
TE Connectivity AMP Connectors 794058-1 | Tin | Crimp | 26 AWG | 30 AWG | Stamped | Socket | Brass | ||
TE Connectivity AMP Connectors 794058-3 | Gold | Crimp | 0.76 Ám | 30 Áin | 26 AWG | 30 AWG | Stamped | Socket | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.10 | |||
Description
General part information
794058 Series
Socket Contact Tin Crimp 26-30 AWG Stamped
