SPD08-200-L-RB-TR
Active3M

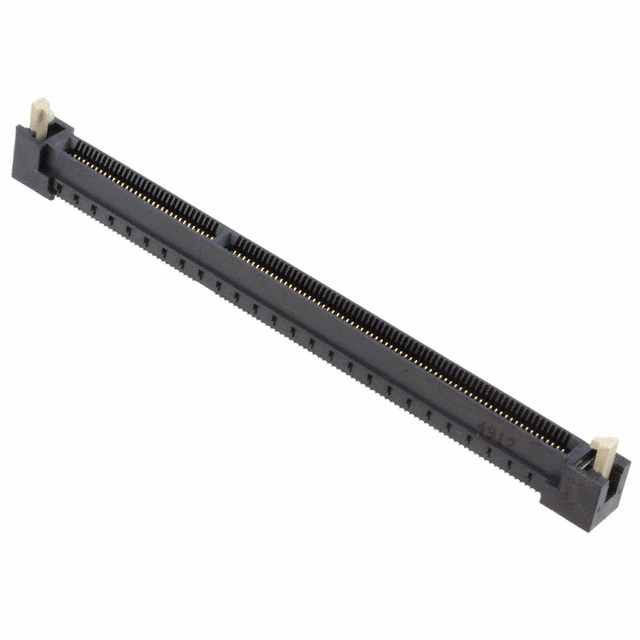

CONN EDGE DUAL FML 200POS 0.031
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPD08-200-L-RB-TR
Active3M
CONN EDGE DUAL FML 200POS 0.031
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SPD08-200-L-RB-TR | SPD08 Series |
|---|---|---|
| Card Thickness | 0.062 in | 0.062 in |
| Card Thickness | 1.57 mm | 1.57 mm |
| Card Type | Non Specified - Dual Edge | Non Specified - Dual Edge, PCI Express™ |
| Color | Black | Black |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Cantilever | Cantilever |
| Features | Latches, Board Guide | Latches, Board Guide |
| Gender | Female | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled | Liquid Crystal Polymer (LCP), Glass Filled, Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | - | 40 - 160 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row | - | 30 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.8 mm | 0.8 mm |
| Pitch [x] | 0.031 in | 0.031 in |
| Read Out | Dual | Dual |
| Termination | Solder | Solder |
SPD08 Series
CONN EDGE DUAL FML 200POS 0.031
| Part | Material - Insulation | Color | Termination | Contact Material | Card Thickness | Card Thickness | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Gender | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Contact Type | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | ||||||
Liquid Crystal Polymer (LCP) | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | PCI Express™ | 0.8 mm | 0.031 in | 160 | ||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 40 | 20 | 20 | 20 | ||
Liquid Crystal Polymer (LCP) | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | PCI Express™ | 0.8 mm | 0.031 in | 160 | |||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 60 | 30 | ||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 100 | |||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | ||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 80 | |||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 40 | 20 | 20 | 20 | ||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 600 | $ 9.11 | |
Description
General part information
SPD08 Series
200 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
